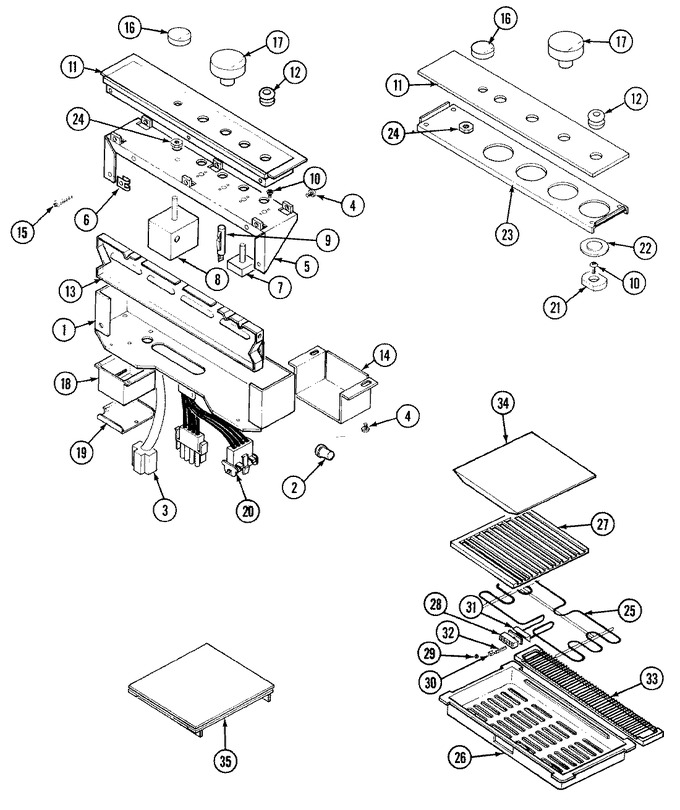

01 - Control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001492 | Box, Control | 1 |
|
- | ||||
| 2 | Y705273 | Connector, Crimp | 1 |
|
- | ||||
| 3 | Y706084 | Cord, Receptacle | 1 |
|
- | ||||
| 4 | 715798 | Screw | 1 |
|
- | ||||
| 4 | Y702696 | Strain, Relief | 1 |
|
- | ||||
| 4 | WP71001171 | Screw, Ground (Replaces: Y703817) | 1 |
|
$ 6.26 | ||||
| 6 | Y700556 | Clip, J | 1 |
|
- | ||||
| 7 | 71001493 | Switch, Infinite | 1 |
|
- | ||||
| 8 | 71001494 | Control, Fan | 1 |
|
- | ||||
| 10 | Y704864 | Screw | 1 |
|
- | ||||
| 11 | 706056 | Frame, Control Assy. | 1 |
|
- | ||||
| 11 | 71001747 | Frame, Glass Assy. (blk) | 1 |
|
- | ||||
| 12 | Y706091 | Wire, Pilot Light | 1 |
|
- | ||||
| 12 | WPY706102 | Grommet, Infinite Switch (Replaces: Y706102) | 1 |
|
Immediately | $ 6.78 | |||
| 12 | Y706103 | Grommet, Fan Switch | 1 |
|
$ 5.49 | ||||
| 13 | 706026 | Divider | 1 |
|
- | ||||
| 14 | Y706118 | Cover, Wire Harness | 1 |
|
- | ||||
| 15 | 706113 | Screw | 1 |
|
- | ||||
| 15 | WPY706189 | Screw (Replaces: Y706189) | 1 |
|
Immediately | $ 6.47 | |||
| 16 | W11715914 | Knob, Fan Switch (blk) (Replaces: Y706036) | 1 |
|
Immediately | $ 36.14 | |||
| 17 | WP706035 | Knob, Infinite Switch (blk) (Replaces: 706035) | 1 |
|
$ 18.45 | ||||
| 17 | Y705274 | Insulator, Splice Cap | 1 |
|
- | ||||
| 18 | 71001498 | Box, Junction | 1 |
|
- | ||||
| 19 | 706065 | Wire, White | 1 |
|
- | ||||
| 19 | 71001499 | Cover, Junction | 1 |
|
- | ||||
| 20 | 71002780 | Harness, Wire Double | 1 |
|
- | ||||
| 20 | Y706085 | Harness, Control (double) | 1 |
|
- | ||||
| 21 | 71001495 | Box, Light | 1 |
|
- | ||||
| 26 | Y706003 | Liner, Pan | 1 |
|
- | ||||
| 27 | Y706059 | Grate, Grill (excalibur) | 1 |
|
$ 119.79 | ||||
| 28 | WPY708730 | Block, Terminal (Replaces: Y708730) | 1 |
|
Immediately | $ 87.44 | |||
| 29 | Y708862 | Nut, Speed | 1 |
|
$ 13.08 | ||||
| 30 | Y700450 | Clip, Shunt | 1 |
|
$ 9.51 | ||||
| 33 | 706116 | Grill, Air (brush Chrome) | 1 |
|
- | ||||
| 34 | 706157 | Cover, Grill(brush Chrome)--na | 1 |
|
- | ||||
| 35 | 71001501 | Capacitor | 1 |
|
- | ||||
| 35 | 71001500 | Relay | 1 |
|
- | ||||
| 35 | 71001751 | Box, Motor Receptical | 1 |
|
- | ||||
| NI | 71001752 | Manual, Use & Care | 1 |
|
- |
