SELECT A DIAGRAM

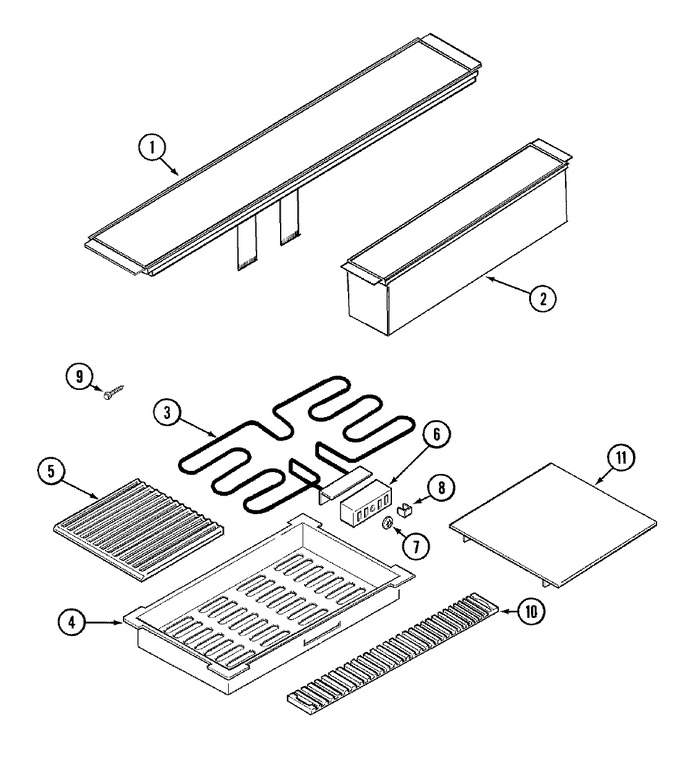

01 - Control Panel
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001115 | Frame, Glass Assy. (blk) | 11 |
|
- | ||||
| 2 | 71001121 | Control Panel Assy. | 11 |
|
- | ||||
| 3 | Y04100124 | Element, Grill (Replaces: Y706013) | 11 |
|
$ 155.57 | ||||
| 4 | Y706003 | Liner, Pan | 11 |
|
- | ||||
| 5 | Y706059 | Grate, Grill (excalibur) | 11 |
|
$ 119.79 | ||||
| 6 | WPY708730 | Block, Terminal (Replaces: Y708730) | 11 |
|
Immediately | $ 87.44 | |||
| 7 | Y708862 | Nut, Speed | 11 |
|
$ 13.08 | ||||
| 8 | Y700450 | Clip, Shunt | 11 |
|
$ 9.51 | ||||
| 9 | WP90767 | Screw (Replaces: 715773) | 11 |
|
Immediately | $ 7.04 | |||
| 9 | W11233072 | Screw (Replaces: Y04100110) | 11 |
|
Immediately | $ 12.62 | |||
| 9 | 706113 | Screw | 11 |
|
- | ||||
| 9 | WPY706189 | Screw (Replaces: Y706189) | 11 |
|
Immediately | $ 6.47 | |||
| 10 | Y706005 | Grill, Air (blk) | 11 |
|
$ 92.64 | ||||
| 11 | Y706127 | Cover, Grill (glass/blk) | 11 |
|
- | ||||
| NI | 04100704 | Strain Relief | 11 |
|
- | ||||
| NI | 04100703 | Receptacle | 11 |
|
- | ||||
| NI | 04100700 | Probe | 11 |
|
- | ||||
| NI | 04100796 | Probe Kit | 11 |
|
- | ||||
| NI | 04100702 | Harness, Wire | 11 |
|
- | ||||
| NI | 04100701 | Clamp, Wire | 11 |
|
- |
