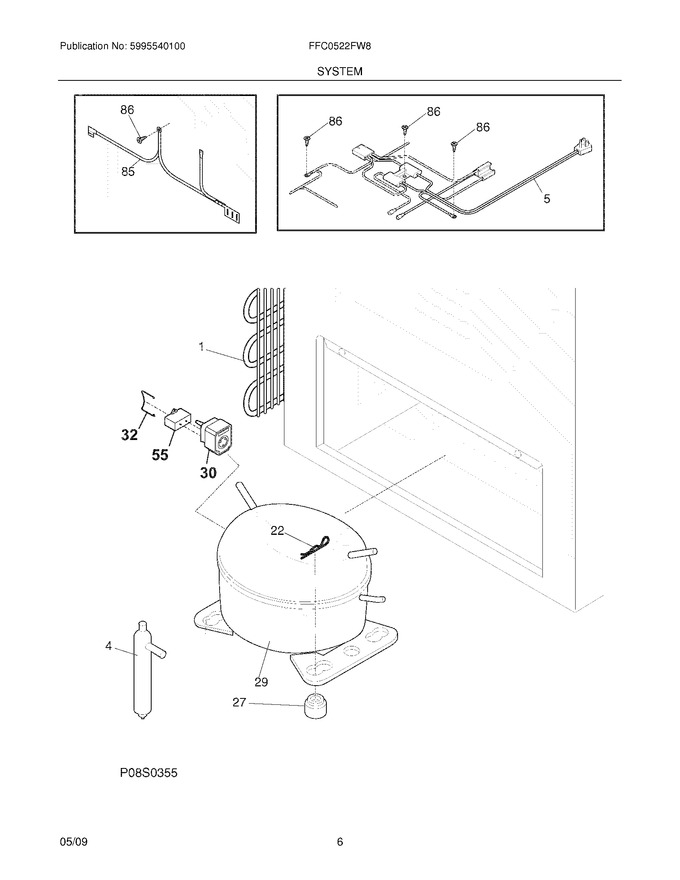

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300120779		Condenser		Appelez-nous	-
4	216987500		Drier-filter		Appelez-nous	-
22	242037701		Clip-compressor Mtg   (Replaces: 216056401)				$ 2.84
27	297293301		Grommet,compressor		Appelez-nous	-
30	216954208		Controller,compressor ,5 Speed				$ 74.42
32	297030500		Clip,controller			Immediately	$ 12.05
55	297286812		Capacitor-run   (Replaces: 218909911)			Immediately	$ 11.78
85	216818300		Wire-ground		Appelez-nous	-
86	216707701		Screw,8-18 X 1/2		Appelez-nous	-
F29	297272600		Compressor,w/o Electricals		Appelez-nous	-
F5	297232500		Harness-main		Appelez-nous	-
NI	216707801		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
