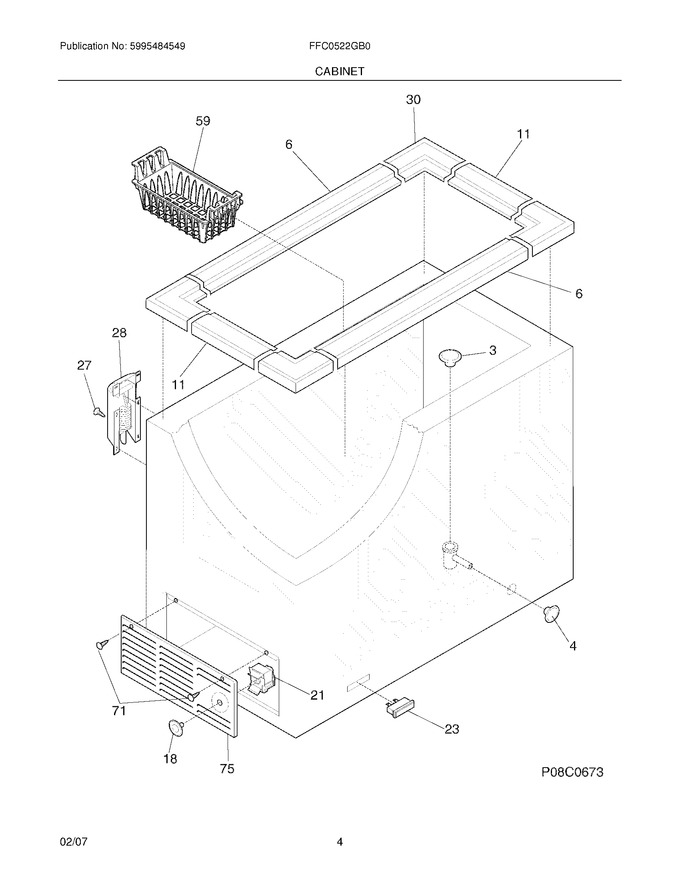

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013606		Plug-button,black				$ 11.34
6	216855710		Breaker,black ,side		Appelez-nous	-
11	216855709		Breaker,chest End ,(2)		Appelez-nous	-
18	216873600		Knob-control		Appelez-nous	-
23	297087400		Light,signal ,amber		Appelez-nous	-
27	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
28	216478801		Hinge,black				$ 31.95
30	216105504		Breaker-corners,black		Appelez-nous	-
59	216848200		Basket				$ 53.21
71	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
75	216782001		Access Panel,black		Appelez-nous	-
F21	5304496559		Control-temperature   (Replaces: 216787700)			Immediately	$ 44.18
NI	216793810		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
