SELECT A DIAGRAM

01 - Cover

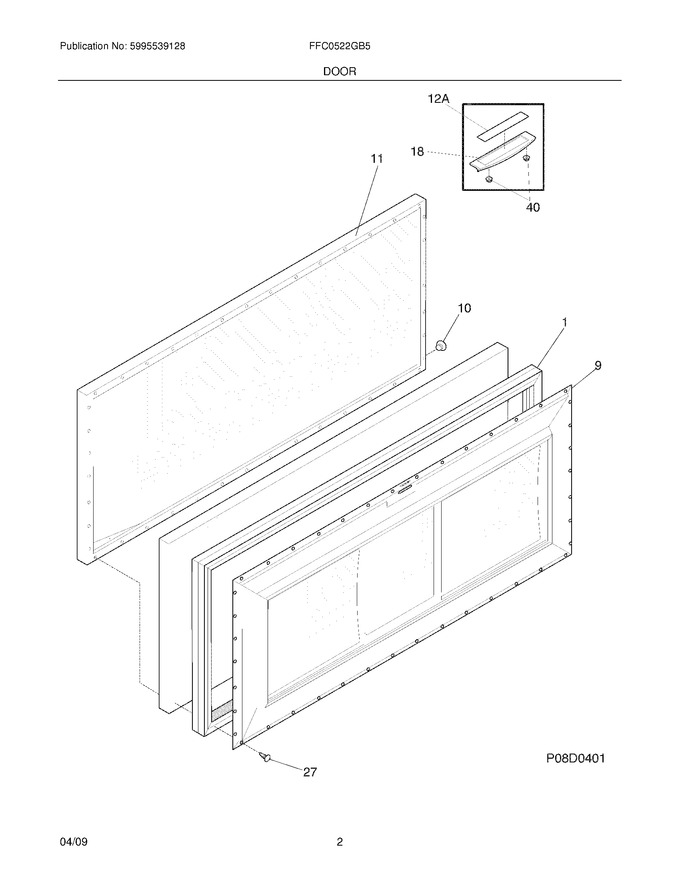

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216480804		Gasket,door Seal ,black				$ 40.74
9	216061502		Panel-inner Lid, White				$ 110.41
10	216923002		Plug Button,black		Appelez-nous	-
11	216106023		Lid,black				$ 82.43
18	216446603		Handle,black		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
12A	216816802		Insert-nameplate		Appelez-nous	-
NI	216858001		Screw,8-18x.50 Ab ,no.10			Immediately	$ 10.85
NI	5304406520		Clip,panel Mtg Kit ,(40)				$ 125.83

    View Diagram in Separate Window       Print Part List
