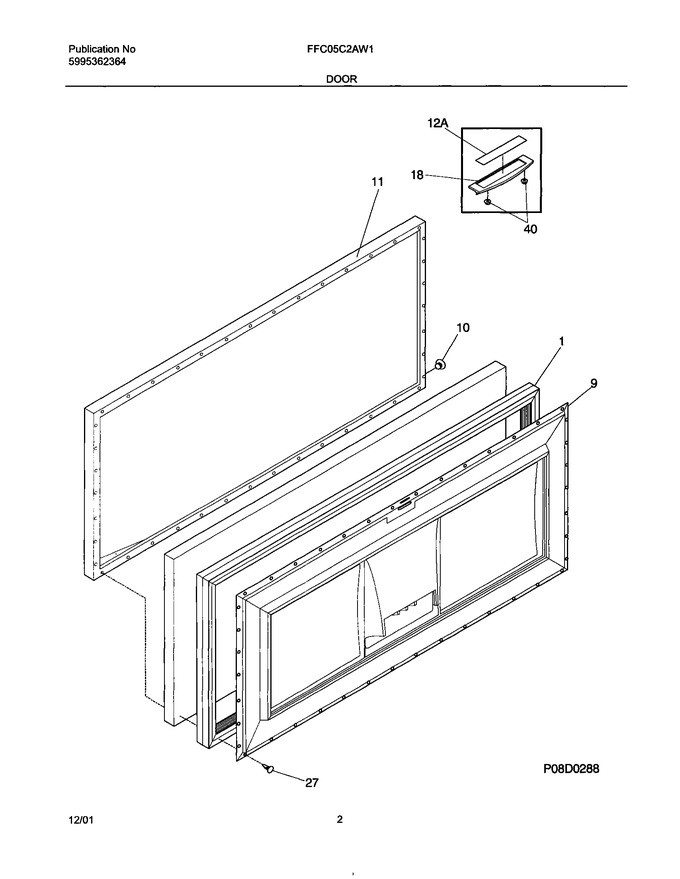

03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216480801 | Gasket-door, White |
|
$ 181.83 | |||||
| 9 | 216061502 | Panel-inner Lid, White |
|
$ 110.41 | |||||
| 10 | 216141101 | Plug Button, White |
|
$ 2.57 | |||||
| 11 | 216106006 | Panel-lid |
|
$ 234.26 | |||||
| 18 | 216446600 | Handle |
|
$ 43.42 | |||||
| 27 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| 12A | 216816801 | Nameplate |
|
$ 29.61 |
