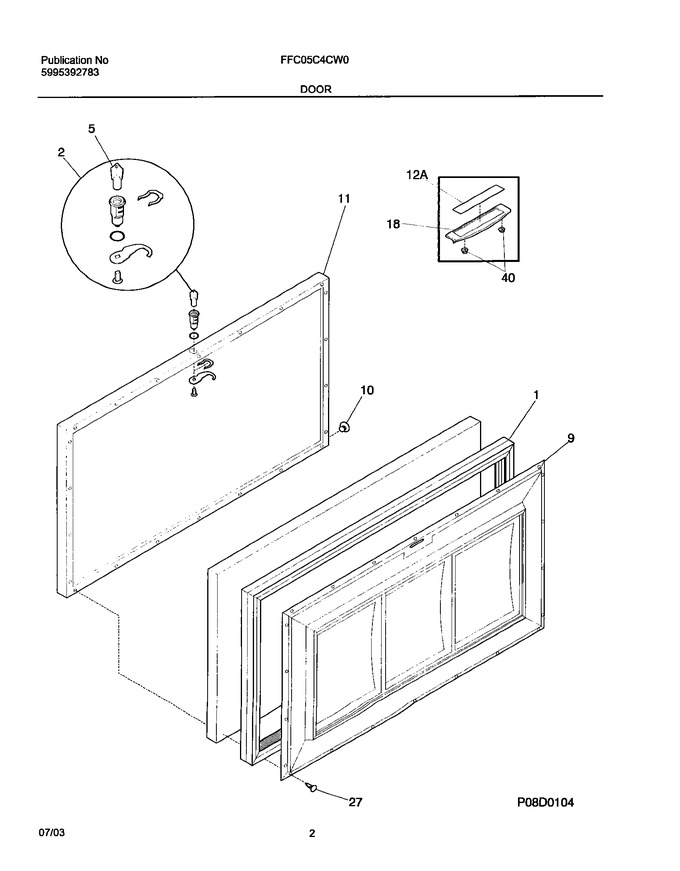

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216480801 | Gasket-door, White |
|
$ 181.83 | |||||
| 9 | 216061500 | Panel-inner Door\lid, White |
|
- | |||||
| 10 | 216141101 | Plug Button, White |
|
$ 2.57 | |||||
| 11 | 216106003 | Panel-outer Door\lid,white |
|
- | |||||
| 18 | 216446600 | Handle |
|
$ 43.42 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 40 | 5309948647 | Fastener, Handle |
|
- | |||||
| 12A | 216816801 | Insert-nameplate |
|
$ 29.61 | |||||
| F2 | 5303925107 | Lock Assy |
|
- | |||||
| F5 | 297147700 | Key, Lock (Replaces: 216702900) |
|
Immediately | $ 7.57 |
