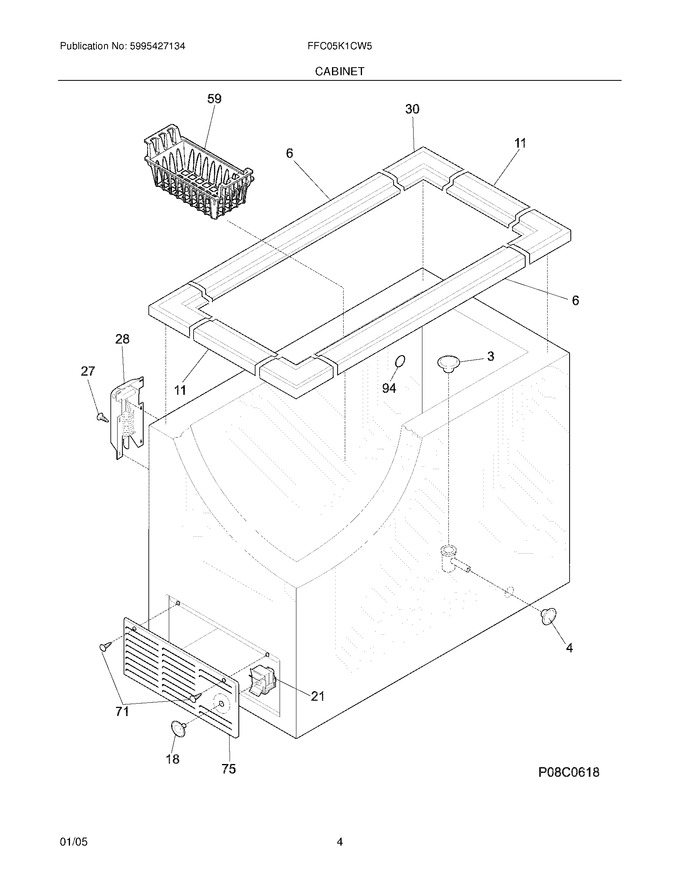

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 216502600 | Plug-drain,interior |
|
Immediately | $ 17.35 | ||||
| 4 | 297013605 | Plug,drain ,blue ,exterior |
|
$ 8.66 | |||||
| 6 | 216855700 | Breaker,hinge Side |
|
$ 32.24 | |||||
| 11 | 216855706 | Breaker-ends,white |
|
- | |||||
| 18 | 216707200 | Knob,temp Control |
|
$ 44.10 | |||||
| 27 | 216337700 | Screw,hex Washer Head `10-24 X 0.500 |
|
- | |||||
| 28 | 216478800 | Hinge Assy |
|
- | |||||
| 30 | 216105500 | Breaker-corners,white |
|
$ 46.83 | |||||
| 59 | 216848200 | Basket,blue ,upper (Replaces: 216848201) |
|
$ 53.21 | |||||
| 71 | 131168200 | Screw,pan Head ,8-18b X 0.31 |
|
Immediately | $ 14.18 | ||||
| 75 | 216782000 | Panel-access,white |
|
- | |||||
| 94 | 216140400 | Lens,frost Indicator ,blue |
|
$ 1.42 | |||||
| F21 | 5304496559 | Control-temperature (Replaces: 216787700) |
|
Immediately | $ 44.18 | ||||
| NI | 216793807 | Energy Guide |
|
- | |||||
| NI | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
