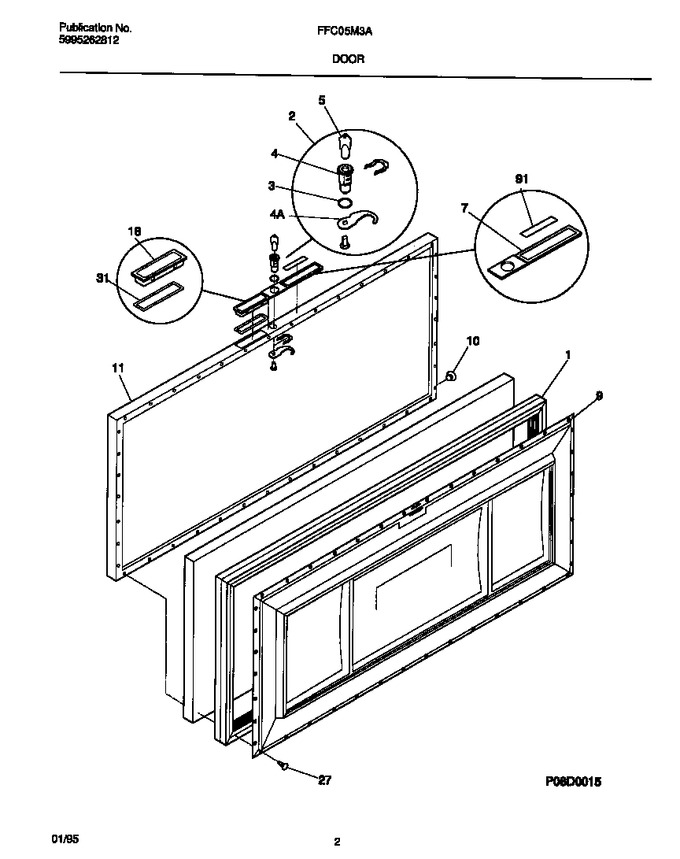

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216480801 | Gasket-door (Replaces: 216078400) |
|
$ 181.83 | |||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 3 | 5300114366 | Washer |
|
- | |||||
| 4 | 216078500 | Hook, Lock |
|
- | |||||
| 4 | 5303283905 | Cylinder, Lock |
|
- | |||||
| 5 | 297147700 | Key Lock (Replaces: 5308037402) |
|
Immediately | $ 7.57 | ||||
| 7 | 216208100 | Bezel, Nameplate |
|
- | |||||
| 9 | 5303925256 | Panel-inner Lid, White |
|
$ 340.57 | |||||
| 10 | 216141101 | Plug Button, White |
|
$ 2.57 | |||||
| 11 | 5303925210 | Panel-outer Lid, White |
|
- | |||||
| 18 | 216140200 | Handle, Recessed, White |
|
- | |||||
| 27 | 5303212828 | Screw, Panel |
|
$ 16.63 | |||||
| 31 | 08009392 | Gasket, White |
|
- | |||||
| 91 | 216208800 | Insert-bezel |
|
- | |||||
| *91560 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
