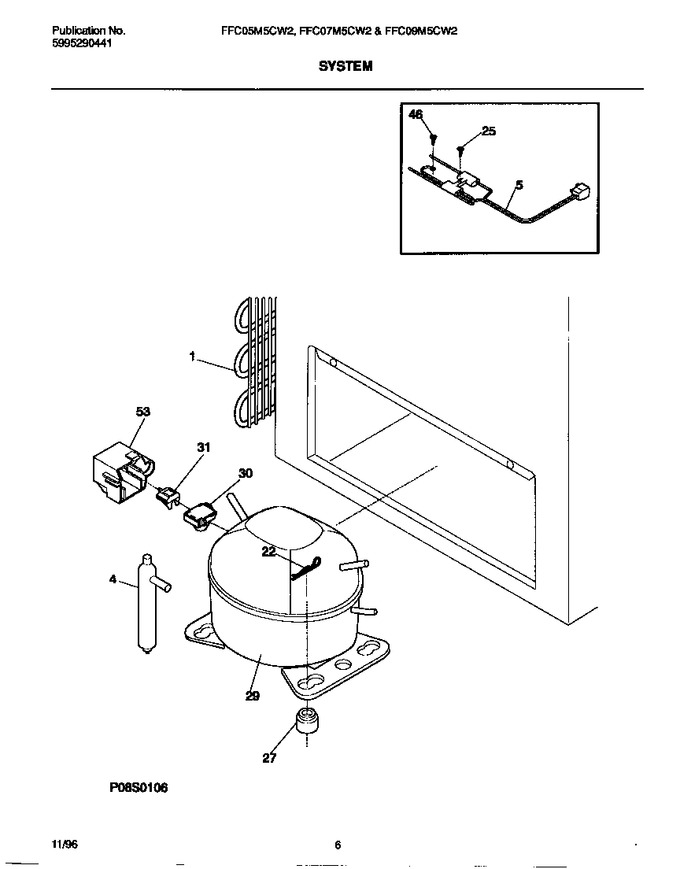

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300120779 | Condenser |
|
- | |||||
| 4 | 5303305677 | Drier, Filter (Replaces: 216099900) |
|
Immediately | $ 31.67 | ||||
| 5 | 216375400 | Harness-wire |
|
- | |||||
| 22 | 216056400 | Clip, Spring Mtg |
|
- | |||||
| 25 | 216022800 | Screw, Washer Head, 8, 18 X 1/2 |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 29 | 5304443412 | Compressor, Service (Replaces: 5303925314) |
|
$ 856.23 | |||||
| 30 | 216347700 | Starter, Ptc |
|
- | |||||
| 31 | 216100105 | Overload Protector |
|
$ 137.92 | |||||
| 46 | 08037851 | Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness |
|
$ 3.57 | |||||
| 53 | 216347800 | Cover, Compressor |
|
- | |||||
| *73322 | 216478900 | Fastener, Energy Guide |
|
- |
