SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - System

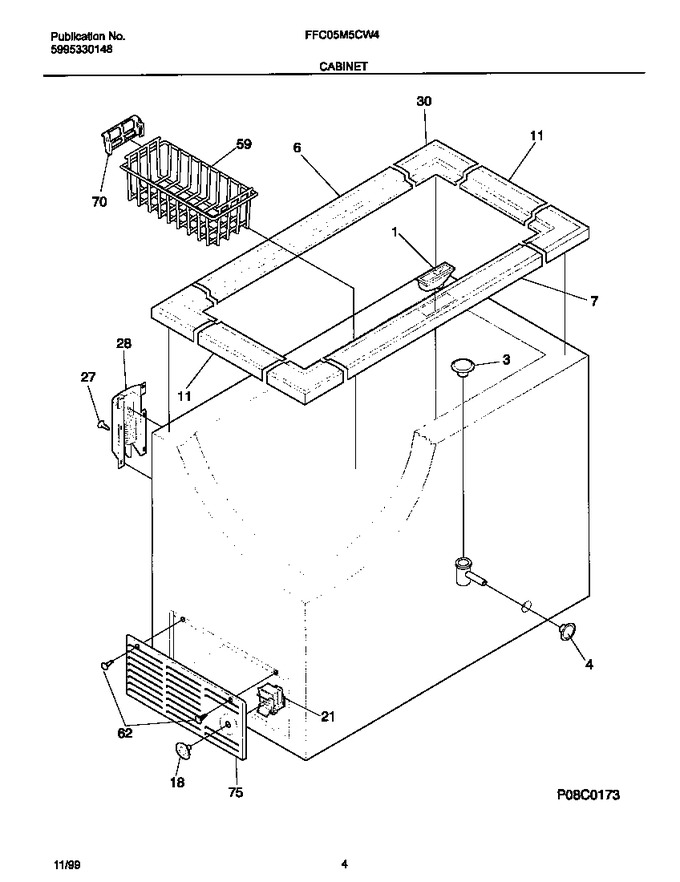

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216117700		Catch-lock		Appelez-nous	-
3	216073900		Plug-drain,interior		Appelez-nous	-
4	216502600		Plug-drain,exterior			Immediately	$ 17.35
6	216105700		Breaker-hinge\front,white		Appelez-nous	-
7	216105800		Breaker, Lock Side		Appelez-nous	-
11	216105600		Breaker-ends, White		Appelez-nous	-
18	216591602		Knob,temp Control		Appelez-nous	-
21	216375500		Control-temperature		Appelez-nous	-
27	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
28	216478800		Hinge Assy		Appelez-nous	-
30	216105500		Breaker-corners,white				$ 46.83
59	216142600		Basket		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
70	216375100		Handle-basket, Teal		Appelez-nous	-
75	216329402		Panel-access,white		Appelez-nous	-
*29121	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
*29122	216269500		Adapter, Drain				$ 14.81

    View Diagram in Separate Window       Print Part List
