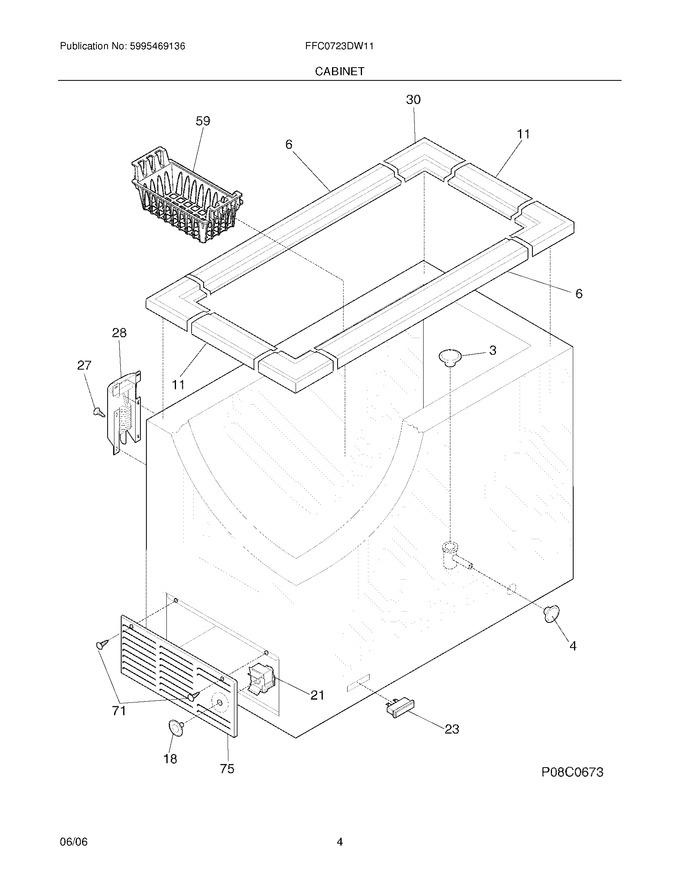

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013605		Plug,drain ,blue ,exterior				$ 8.66
6	216855702		Breaker,side		Appelez-nous	-
11	216855706		Breaker-ends,white		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
23	297087400		Light,signal ,amber		Appelez-nous	-
27	216337700		Screw,hex Washer Head `10-24 X 0.500		Appelez-nous	-
28	216478800		Hinge Assy		Appelez-nous	-
30	216105500		Breaker-corners,white				$ 46.83
59	216848200		Basket				$ 53.21
71	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
75	216782000		Panel-access,white		Appelez-nous	-
F21	5304496559		Control-temperature   (Replaces: 216787700)			Immediately	$ 44.18
NI	216793915		Energy Guide		Appelez-nous	-
NI	5303321319		Paint,touch-up ,white			Immediately	$ 13.46
