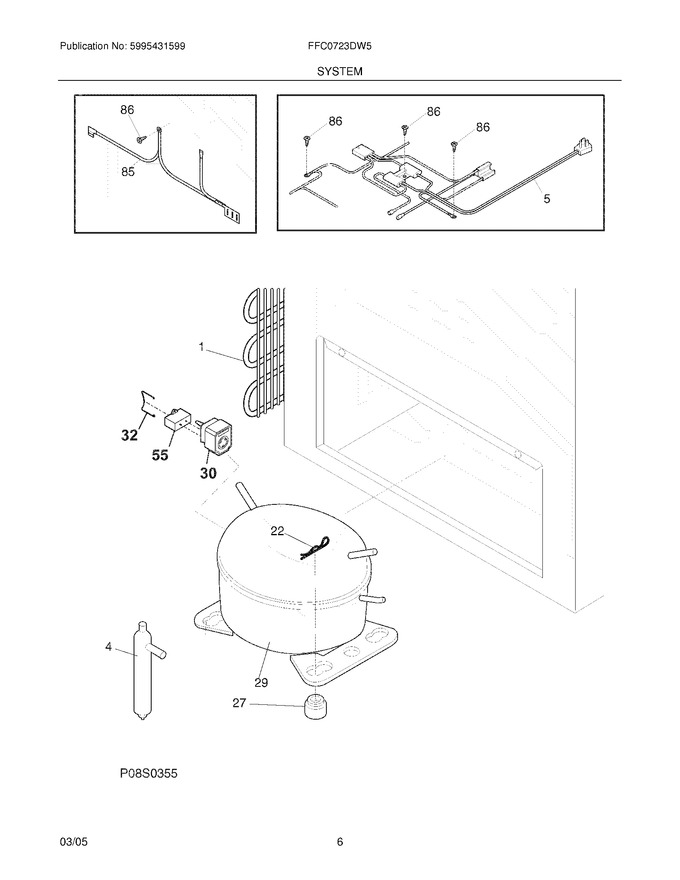

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
22	216056400		Clip,compressor Mtg ,spring		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
32	216983700		Clip,controller		Appelez-nous	-
55	297286812		Capacitor,run ,10mf   (Replaces: 216985000)			Immediately	$ 11.78
85	216818300		Wire-ground		Appelez-nous	-
86	216707700		Screw,8-18 X 1/2		Appelez-nous	-
F1	5300120780		Condenser		Appelez-nous	-
F29	5304443412		Compressor,w/o Electricals   (Replaces: 297004100)				$ 856.23
F30	216649323		Controller,compressor				$ 105.51
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	216952300		Harness-main		Appelez-nous	-
NI	216987700		Harness,adapter		Appelez-nous	-
NI	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
