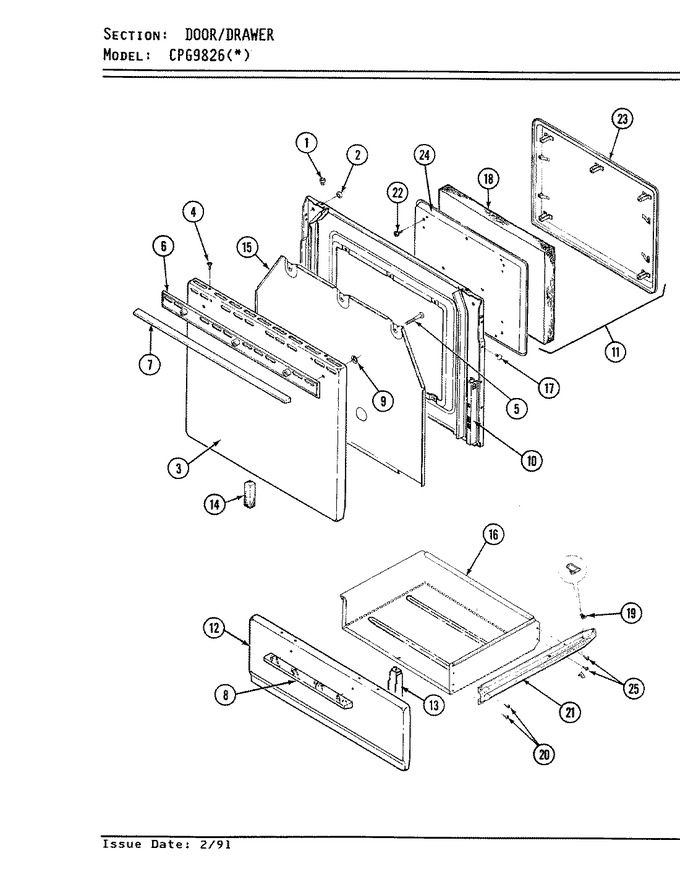

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7103P114-60		Nut, Snap   (Replaces: 7103P114-60)	1			$ 9.89
2	8003P009-60		Bumper, Door (square)	35	Appelez-nous	-
2	8003P002-60		Bumper Door (round)	1	Appelez-nous	-
4	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
5	7101P089-60		Screw, Door Handle	1	Appelez-nous	-
6	7720P063-60		Trim, Handle	1	Appelez-nous	-
7	7701P030-60		Handle, Door (chr)	1	Appelez-nous	-
8	74002481		Screw, Handle   (Replaces: 7101P283-60)	1			$ 5.82
8	7701P012-60		Handle, Drawer (chr)	1	Appelez-nous	-
9	WP3195558		Nut, Speed   (Replaces: 7103P044-60)	1			$ 7.68
10	2402W173-15		Lining	35	Appelez-nous	-
10	2402W153-15		Lining, Door	1	Appelez-nous	-
10	2402W173-19		Lining	54	Appelez-nous	-
10	8114P274-60		Label (cleaning Inst.)	1	Appelez-nous	-
11	2410A028-19		Pad Door Assy	54	Appelez-nous	-
11	2410A028-15		Pad, Oven Dr	1	Appelez-nous	-
13	3801F115-51		Bracket, Drawer	1	Appelez-nous	-
14	7208P002-60		Seal	1	Appelez-nous	-
15	3601F095-51		Baffle	1	Appelez-nous	-
16	3405F008-80		Drawer, Service	1	Appelez-nous	-
17	7107P017-60		Rivet	1	Appelez-nous	-
18	7002P118-60		Insulation, Door	1	Appelez-nous	-
19	8016P004-60		Glide, Drawer	38	Appelez-nous	-
19	8016P004-60		Glide, Drawer	1	Appelez-nous	-
19	8016P009-60		Glide, Drawer	38	Appelez-nous	-
20	7101P287-60		Screw, Metal Grounding	1			$ 12.03
21	3406F027-51		Runner, Outer	38	Appelez-nous	-
21	3406F020-80		Runner, Inner	1	Appelez-nous	-
22	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
23	2410W028-15		Pad Assy, O.d. Solid	1	Appelez-nous	-
23	2410W028-19		Pad	54	Appelez-nous	-
24	2410F012-51		Pad, Inner Ov Dr	1	Appelez-nous	-
25	7101P272-60		Screw, Service Drawer	1	Appelez-nous	-
