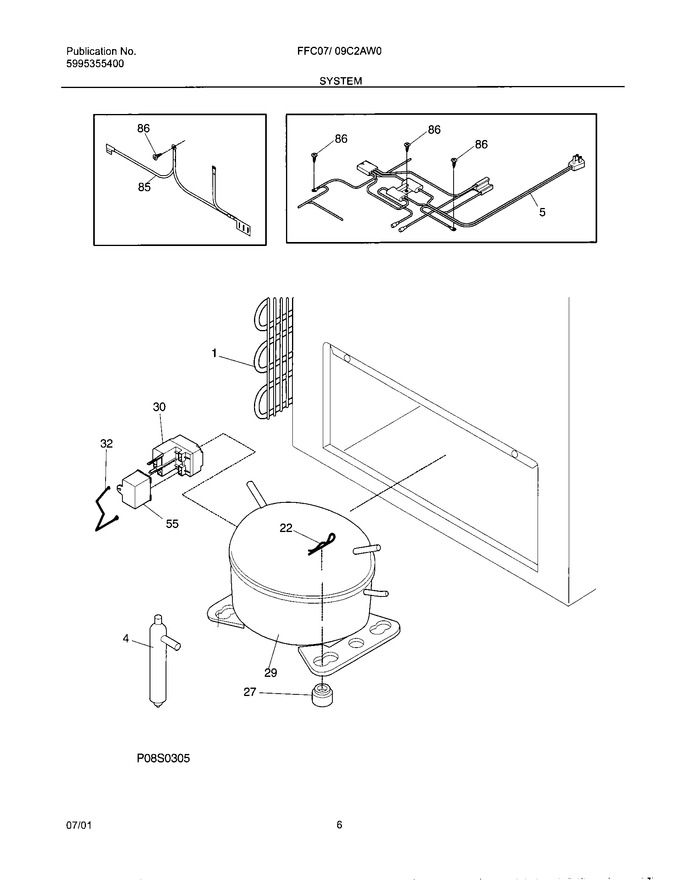

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
22	216056400		Clip, Spring Mtg		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216649314		Controller				$ 141.28
32	216649200		Clip,controller				$ 6.30
85	216533100		Wire,ground		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
F1	5300120780		Condenser		Appelez-nous	-
F29	5304443412		Compressor,w/o Electricals   (Replaces: 216784200)				$ 856.23
F5	216711500		Harness-main		Appelez-nous	-
F55	218909912		Capacitor-run   (Replaces: 216787800)			Immediately	$ 74.75
NI	216478900		Fastener, Energy Guide		Appelez-nous	-
