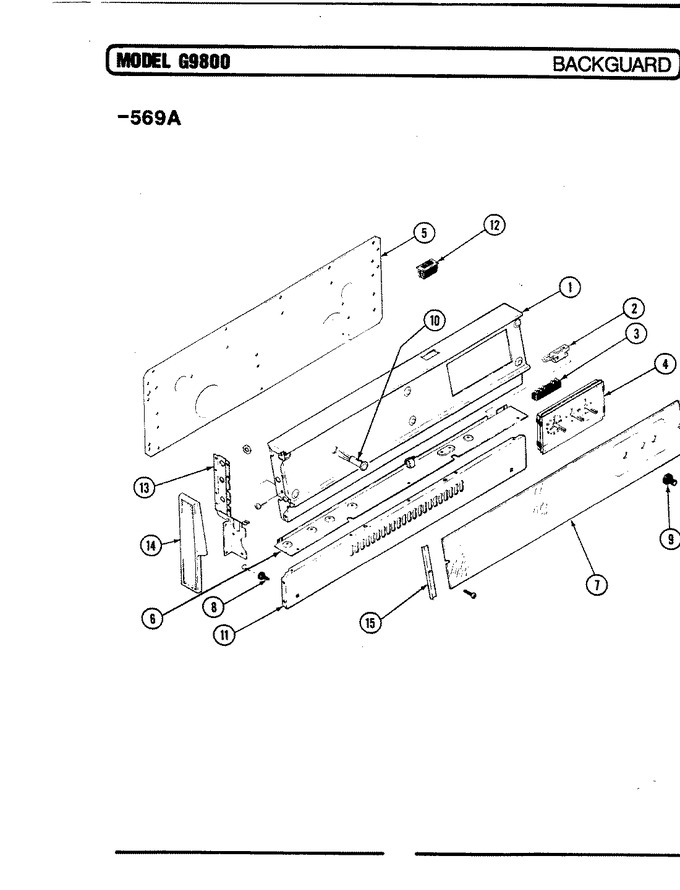

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2601W261-81 | Backguard Assy | 1 |
|
- | ||||
| 2 | 7401P010-60 | Block, Upper Discont | 1 |
|
- | ||||
| 3 | 7401P015-60 | Block, Terminal | 1 |
|
- | ||||
| 4 | 7407P006-60 | Light, Indicator | 1 |
|
- | ||||
| 4 | 7601P122-60 | Clock, Automatic | 1 |
|
- | ||||
| 5 | 4005F071-80 | Cover, Bkgd. Wire | 1 |
|
- | ||||
| 6 | 4005F073-80 | Cover, Bottom Bkgd Wire | 1 |
|
- | ||||
| 7 | 7902P292-60 | Glass, Bkgd | 1 |
|
- | ||||
| 8 | 7105P002-60 | Support, Main Top | 1 |
|
- | ||||
| 9 | 7711P126-60 | Knob, Clock | 1 |
|
- | ||||
| 10 | 7407P013-60 | Light, Indicator | 1 |
|
- | ||||
| 11 | 2620W018-00 | Panel, Bkgd Lower | 1 |
|
- | ||||
| 12 | 7403P067-60 | Switch, Rocker (blk) | 1 |
|
$ 91.35 | ||||
| 13 | 3807F213-80 | Support, Bkgd Left | 1 |
|
- | ||||
| 13 | 3807F214-80 | Support, Bkgd Right | 1 |
|
- | ||||
| 14 | 7726P021-60 | End Cap, Backguard (rt-chr) | 1 |
|
- | ||||
| 14 | 7726P010-60 | End Cap, Backguard (lt-chr) | 1 |
|
- | ||||
| 15 | 7720P092-60 | Trim, Glass Ret | 1 |
|
- |
