SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

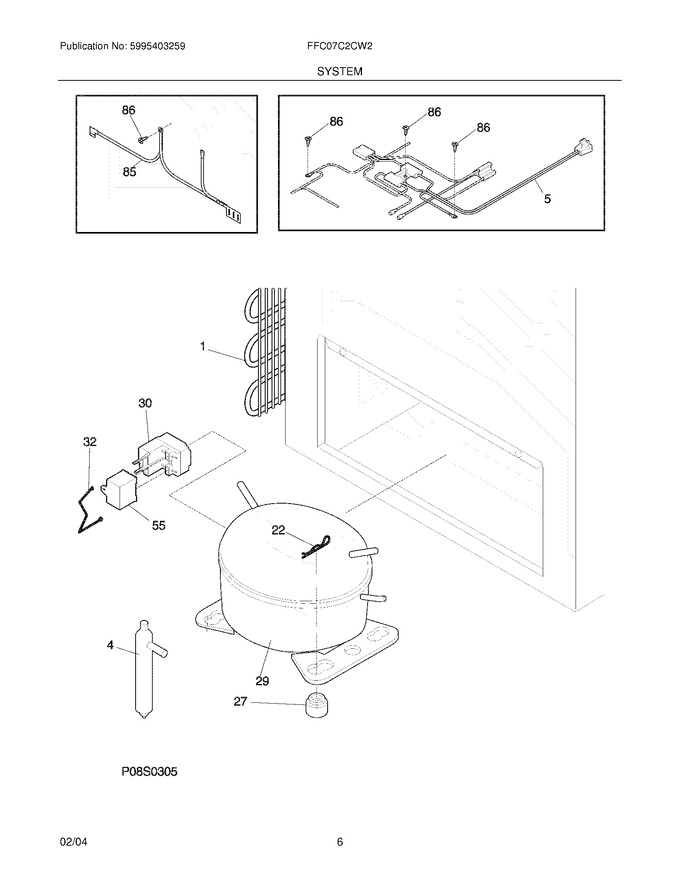

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
22	216056400		Clip,compressor Mtg ,spring		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	5304492198		Controller   (Replaces: 216649305)				$ 69.46
32	216694500		Clip,controller		Appelez-nous	-
55	297286812		Capacitor-run   (Replaces: 218909911)			Immediately	$ 11.78
85	216818300		Wire-ground		Appelez-nous	-
86	216707700		Screw,8-18 X 1/2		Appelez-nous	-
F1	5300120780		Condenser		Appelez-nous	-
F29	5304443412		Compressor,w/o Electricals   (Replaces: 216820500)				$ 856.23
F5	216711500		Harness-main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
