SELECT A DIAGRAM
01 - Body
02 - Control
03 - Control Panel
04 - Door

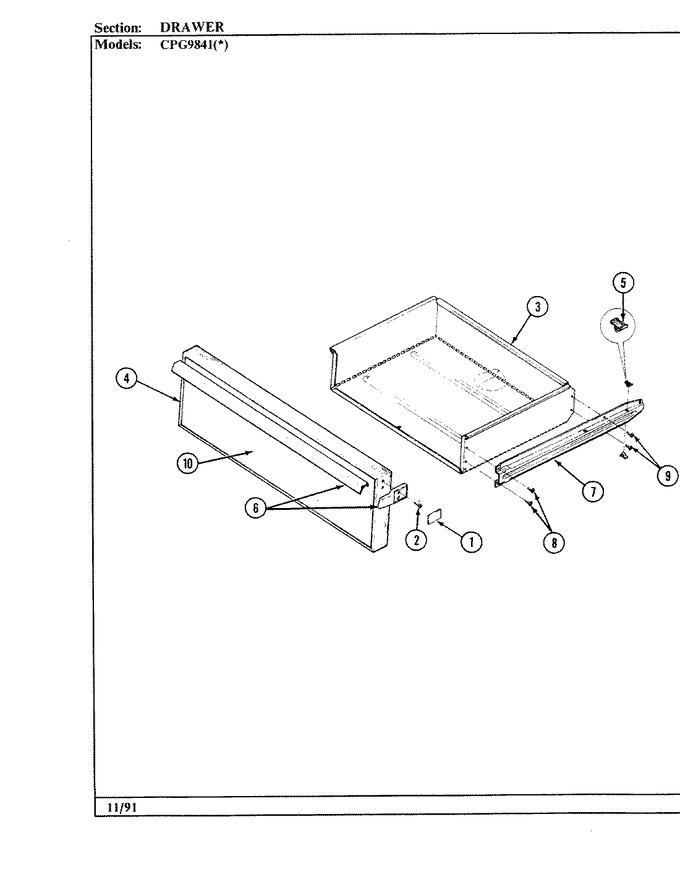

05 - Drawer
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7728P068-60 | Insert, Handle (chrome) | 1 |
|
- | ||||
| 2 | 7101P123-60 | Screw | 1 |
|
- | ||||
| 3 | 3405F008-80 | Drawer, Service | 1 |
|
- | ||||
| 4 | 7706P196-60 | Frame, Storage Drawer | 1 |
|
- | ||||
| 5 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 5 | 8016P004-60 | Glide, Drawer | 38 |
|
- | ||||
| 5 | 8016P009-60 | Glide, Drawer | 38 |
|
- | ||||
| 6 | 7701P031-60 | Handle, Door White | 1 |
|
- | ||||
| 6 | 7701P048-60 | Handle, Storage Drawer | 1 |
|
- | ||||
| 7 | 3406F026-80 | Runner, Inner | 38 |
|
- | ||||
| 7 | 3406F020-80 | Runner, Inner | 1 |
|
- | ||||
| 8 | 7101P123-60 | Screw | 1 |
|
- | ||||
| 9 | 7101P287-60 | Screw, Metal Grounding | 1 |
|
$ 12.03 | ||||
| 10 | 2416F027-70 | Panel, Storage Door Blk | 1 |
|
- | ||||
| 10 | 3801F115-51 | Bracket, Drawer | 1 |
|
- | ||||
| 10 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 |
