SELECT A DIAGRAM

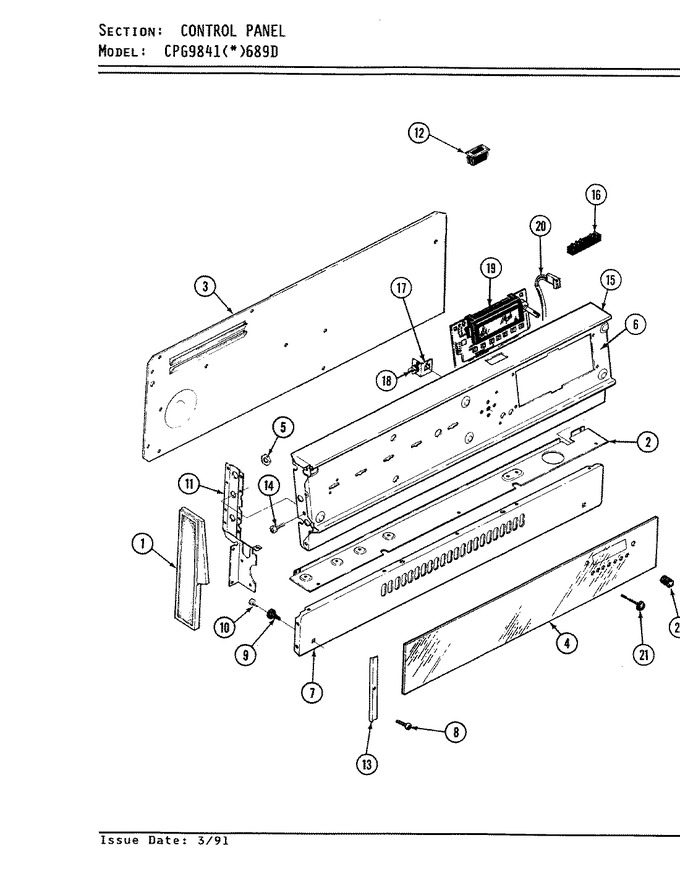

01 - Body


02 - Control (oven)


03 - Control Panel


04 - Door/drawer


05 - Internal Controls


06 - Oven


07 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7726P031-60		Trim, Bkgd End (lt)	1	Appelez-nous	-
1	7726P032-60		Trim, Bkgd End (rt)	1	Appelez-nous	-
2	4005F155-80		Cover, Bottom Bkdg Wire	1	Appelez-nous	-
3	WP59002061		Screw (6abx38-zn)   (Replaces: 7101P077-60)	1			$ 6.98
3	4005F194-80		Cover, Backguard	1	Appelez-nous	-
3	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85
4	7910P154-60		Glass, Control Panel	1	Appelez-nous	-
5	7103P053-60		Nut, Push-on End Cap	1	Appelez-nous	-
6	2601W328-84		Panel, Control (almond)	1	Appelez-nous	-
7	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
7	2620W053-90		Backguard Panel	1	Appelez-nous	-
8	7101P008-60		Screw	1	Appelez-nous	-
9	8010P069-60		Spacer, Hinge (main Top)	1			$ 8.57
10	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
11	3807F348-51		Support, Bkgd End Lf	1	Appelez-nous	-
11	3807F349-51		Support, Bkgd End Rt	1	Appelez-nous	-
11	WP7101P126-60		Screw   (Replaces: 7101P058-60)	1		Immediately	$ 6.85
11	WPW10068250		Screw   (Replaces: 7101P074-60)	1			$ 3.66
12	7403P067-60		Switch, Rocker (blk)	1			$ 91.35
13	7742P009-60		Trim, Retainer Glass	1	Appelez-nous	-
14	WPW10068250		Screw   (Replaces: 7101P074-60)	1			$ 3.66
15	7715P030-60		Trim, Bkgd Top	1	Appelez-nous	-
16	7401P015-60		Block, Terminal	1	Appelez-nous	-
17	3801F213-45		Bracket	1	Appelez-nous	-
18	7403P087-60		Switch, H.l. Fan	1	Appelez-nous	-
19	7003P041-60		Insulation, Fiberboard	1	Appelez-nous	-
19	7601P163-60		Clock	1	Appelez-nous	-
20	5170P100-60		Harness, Oven Sensor	1	Appelez-nous	-
20	7417P002-60		Connector, Pin	1	Appelez-nous	-
21	7711P452-60		Button, Clock Set	1	Appelez-nous	-
22	WP7711P492-60		Knob, Clock (blk)   (Replaces: 7711P431-60)	1			$ 12.13

    View Diagram in Separate Window       Print Part List
