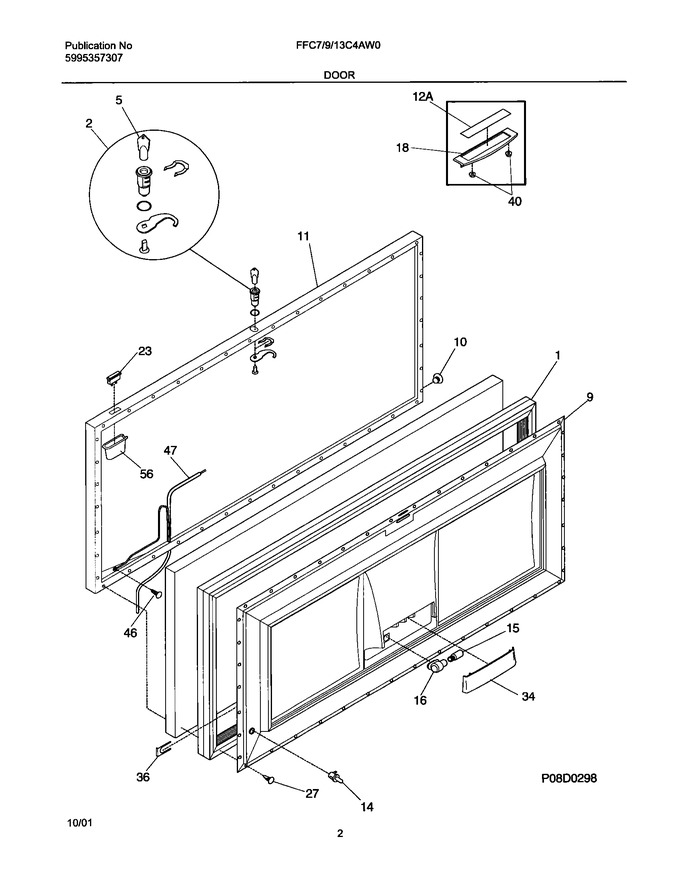

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216480901		Gasket-door,white				$ 107.26
9	216688100		Panel-inner Door,frzr		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216113127		Panel-lid				$ 221.81
16	216684000		Socket-light/lamp		Appelez-nous	-
18	216446600		Handle				$ 43.42
23	5308002706		Light-signal,amber				$ 39.11
27	5303212828		Clip,panel				$ 16.63
34	216160400		Shield-light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
46	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
47	216819800		Harness-lid/defrost		Appelez-nous	-
56	216694200		Sealing Cap		Appelez-nous	-
12A	216816801		Nameplate				$ 29.61
F14	297243800		Switch-light Plunger   (Replaces: 216472300)				$ 36.68
F15	5304517886		Lamp,light Bulb ,40 W ,120 V   (Replaces: 216608600)			Immediately	$ 73.06
F2	5303925107		Lock Assy		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
