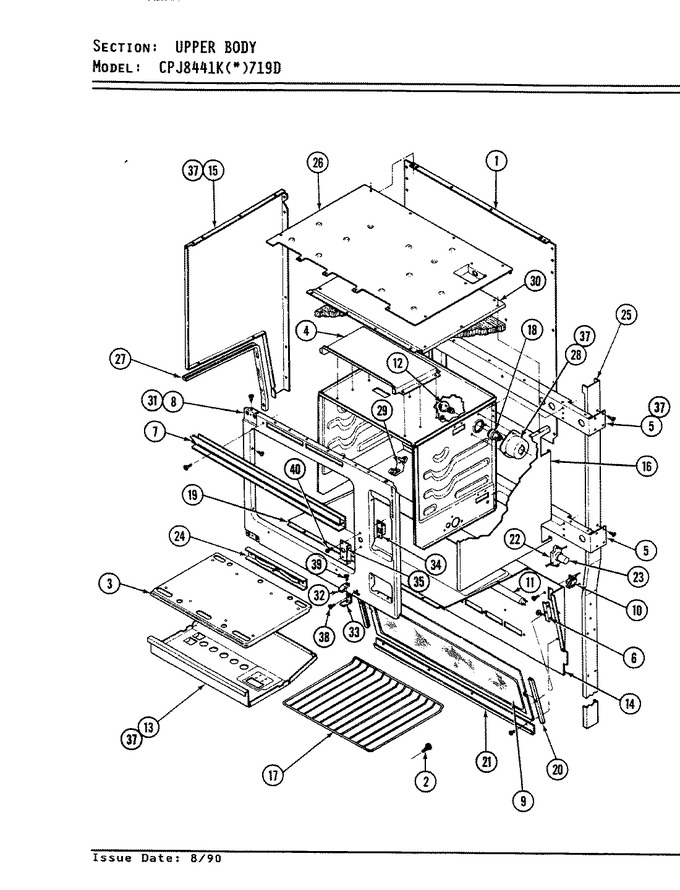

01 - Body
02 - Lower Door/drawer
03 - Main Top & Lower Controls
04 - Manifold Panel/burner Box
05 - Oven
06 - Upper Body
07 - Upper Controls
08 - Upper Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3802F026-80 | Brace | 1 |
|
- | ||||
| 1 | 4002F035-80 | Back, Main | 1 |
|
- | ||||
| 2 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 2 | 8010P069-60 | Spacer, Hinge (main Top) | 1 |
|
$ 8.57 | ||||
| 3 | 5720A001-17 | Bottom, Oven | 1 |
|
- | ||||
| 4 | 4006W020-23 | Flue Assy. | 1 |
|
- | ||||
| 5 | 3802F024-80 | Brace | 1 |
|
- | ||||
| 6 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 6 | 3801F009-34 | Bracket, Glass Support | 1 |
|
- | ||||
| 7 | 7706P035-60 | Extrusion, Vent | 1 |
|
- | ||||
| 8 | 2201F064-23 | Frame, Oven Front | 1 |
|
- | ||||
| 9 | 7902P011-60 | Glass, Backguard | 1 |
|
- | ||||
| 10 | 7408P006-60 | Receptacle, Lamp | 1 |
|
- | ||||
| 10 | 3801F057-34 | Bracket, Lamp Holder | 1 |
|
- | ||||
| 11 | WP3400074 | Screw (Replaces: 7101P068-60) | 1 |
|
$ 6.47 | ||||
| 11 | WP95292 | Light, Control Panel (Replaces: 7407P004-60) | 1 |
|
Immediately | $ 121.45 | |||
| 11 | 7412P005-60 | Ballast | 1 |
|
- | ||||
| 12 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 1 |
|
Immediately | $ 1.98 | |||
| 13 | 4009F001-45 | Lining, Misc. | 1 |
|
- | ||||
| 14 | 7201P008-60 | Gasket | 1 |
|
- | ||||
| 14 | 4006W018-23 | Box Assy, Flue | 1 |
|
- | ||||
| 14 | 2612F022-32 | Panel, Backsplash | 1 |
|
- | ||||
| 15 | 2618F008-74 | Panel, Side | 1 |
|
- | ||||
| 15 | 2618F005-74 | Panel, Side | 1 |
|
- | ||||
| 16 | 3804F045-51 | Retainer, Side | 1 |
|
- | ||||
| 17 | 7801P008-60 | Rack | 1 |
|
- | ||||
| 18 | 7408P001-60 | Recept, Oven Light | 1 |
|
- | ||||
| 19 | 3804F029-23 | Retainer | 1 |
|
- | ||||
| 20 | 7101P075-60 | Screw | 1 |
|
- | ||||
| 20 | 7720P019-60 | Retainer, Glass | 1 |
|
- | ||||
| 21 | 7706P014-60 | Extrusion, Glass Ret | 1 |
|
- | ||||
| 21 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 22 | WP74004005 | Screw (Replaces: 7101P076-60) | 1 |
|
$ 6.95 | ||||
| 22 | 7408P013-60 | Receptacle, Fluor | 1 |
|
- | ||||
| 23 | 7415P001-60 | Starter | 1 |
|
- | ||||
| 24 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 24 | 5720A002-11 | Support, Oven Bottom | 1 |
|
- | ||||
| 25 | 3818F006-51 | Support, Oven Side | 1 |
|
- | ||||
| 26 | 2007W001-80 | Top, Main Upper | 1 |
|
- | ||||
| 27 | 7720P101-60 | Trim | 1 |
|
- | ||||
| 27 | 7720P102-60 | Trim | 1 |
|
- | ||||
| 28 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 28 | 4001F016-23 | Housing, Lamp | 1 |
|
- | ||||
| 29 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 1 |
|
Immediately | $ 11.07 | |||
| 30 | 3609F002-80 | Guard, Side Ins. | 1 |
|
- | ||||
| 30 | 3804F003-51 | Retainer, Top | 1 |
|
- | ||||
| 30 | 3804F033-51 | Retainer | 1 |
|
- | ||||
| 31 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 | |||
| 32 | 8016P001-60 | Glide, Door | 1 |
|
- | ||||
| 33 | 8004P002-60 | Support | 1 |
|
- | ||||
| 34 | 8002P006-60 | Catch Female | 1 |
|
- | ||||
| 35 | 3605F001-32 | Plate | 1 |
|
- | ||||
| 37 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 38 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 1 |
|
$ 6.77 | ||||
| 39 | 7101P019-60 | Screw, Dr Lck Hndl | 1 |
|
- | ||||
| 40 | WP4159193 | Screw (Replaces: 7101P018-60) | 1 |
|
$ 4.29 | ||||
| NI | WP4159193 | Screw (Replaces: 7101P018-60) | 1 |
|
$ 4.29 |
