SELECT A DIAGRAM
01 - Body
02 - Lower Door/drawer
03 - Main Top & Lower Controls
04 - Manifold Panel/burner Box
05 - Oven
06 - Upper Body

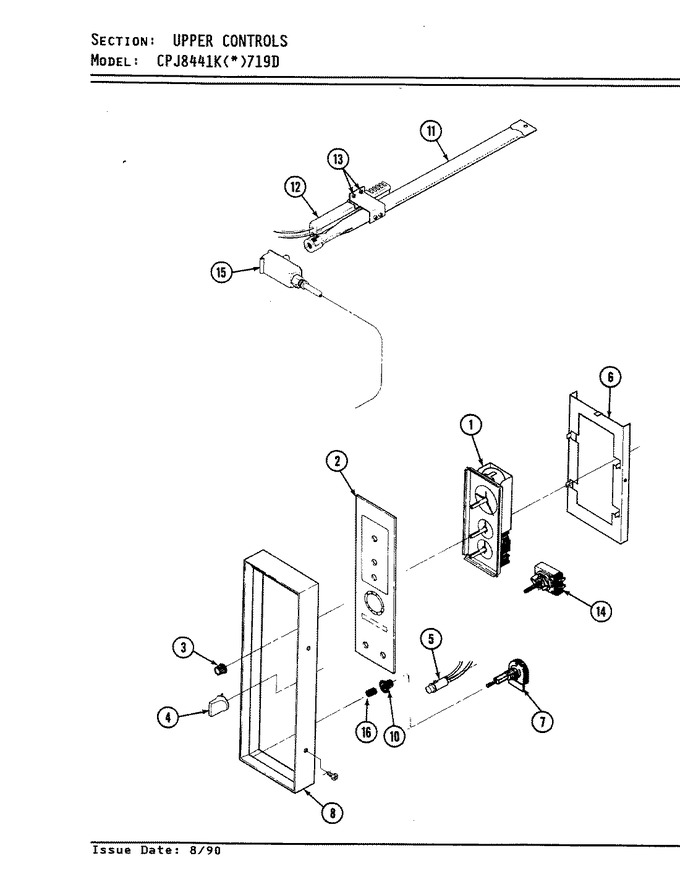

07 - Upper Controls
08 - Upper Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7003P004-60 | Insulation Clock | 1 |
|
- | ||||
| 1 | 7601P056-60 | Clock | 1 |
|
- | ||||
| 2 | 7902P142-60 | Glass, Control Panel | 1 |
|
- | ||||
| 2 | 7719P040-60 | Plate, Name | 1 |
|
- | ||||
| 3 | 7711P007-60 | Knob, Clock | 1 |
|
- | ||||
| 4 | 7711P288-60 | Knob, Thermostat | 1 |
|
- | ||||
| 5 | 3801F111-51 | Bracket, Indicator Light | 1 |
|
- | ||||
| 5 | 7407P024-60 | Light, Signal | 1 |
|
- | ||||
| 5 | WP74004005 | Screw (Replaces: 7101P076-60) | 1 |
|
$ 6.95 | ||||
| 6 | 3605F002-80 | Plate | 1 |
|
- | ||||
| 6 | WP74004005 | Screw (Replaces: 7101P076-60) | 1 |
|
$ 6.95 | ||||
| 7 | 7403P019-60 | Switch, Light | 1 |
|
- | ||||
| 8 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 8 | 3807F133-34 | Support | 1 |
|
- | ||||
| 8 | 3807F039-34 | Support | 1 |
|
- | ||||
| 8 | 7720P087-60 | Trim, Control Panel | 1 |
|
- | ||||
| 8 | WP59002061 | Screw (6abx38-zn) (Replaces: 7101P077-60) | 1 |
|
$ 6.98 | ||||
| 10 | 7214P001-60 | Sleeve, Switch | 1 |
|
- | ||||
| 11 | 7505P028-60 | Burner, Bake | 1 |
|
- | ||||
| 11 | 3807F061-34 | Support | 1 |
|
- | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 12 | 12400035 | Lighter, Bake (Replaces: 7432P066-60) | 1 |
|
Immediately | $ 60.44 | |||
| 12 | 7401P018-60 | Block | 1 |
|
- | ||||
| 13 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 1 |
|
$ 4.29 | ||||
| 14 | 7404P021-60 | Thermostat | 1 |
|
- | ||||
| 15 | 7501P011-60 | Valve, Oven | 1 |
|
- | ||||
| 16 | 7711P008-60 | Knob, Light Switch | 1 |
|
- | ||||
| NI | 1555251 | Nut, Loxit (3/8``) | 1 |
|
- |
