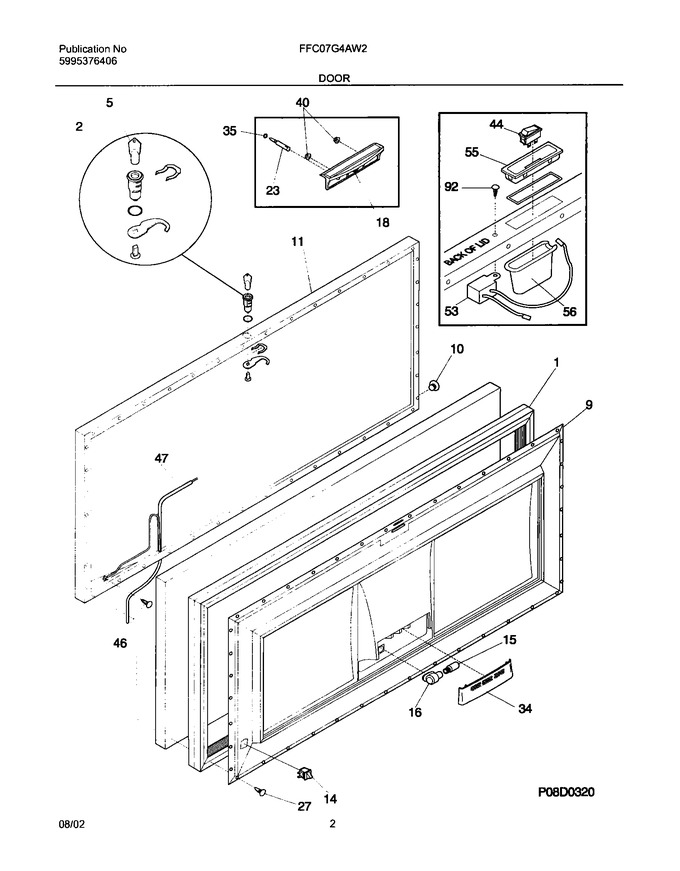

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303925107		Lock Assy		Appelez-nous	-
9	216829700		Panel-lid				$ 77.49
10	216141101		Plug Button, White				$ 2.57
11	216113128		Lid,white		Appelez-nous	-
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
18	216205004		Handle,white		Appelez-nous	-
23	216212700		Light-signal,amber		Appelez-nous	-
27	5303212828		Clip,panel Mtg				$ 16.63
34	5303296969		Shield-light		Appelez-nous	-
35	5303297015		Washer, Signal Light		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
46	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
55	216164000		Housing, Switch		Appelez-nous	-
55	216140200		Handle, Recessed, White		Appelez-nous	-
56	216694200		Cap,sig Light Seal		Appelez-nous	-
92	5303272319		Screw,hex Washer Head ,8-32 X 7/16 ,buzzer		Appelez-nous	-
F1	216480901		Gasket,door Seal ,white				$ 107.26
F14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
F16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
F44	216823300		Switch-rocker				$ 47.15
F47	216799700		Harness-lid		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
F53	5303208483		Buzzer, Alarm		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
