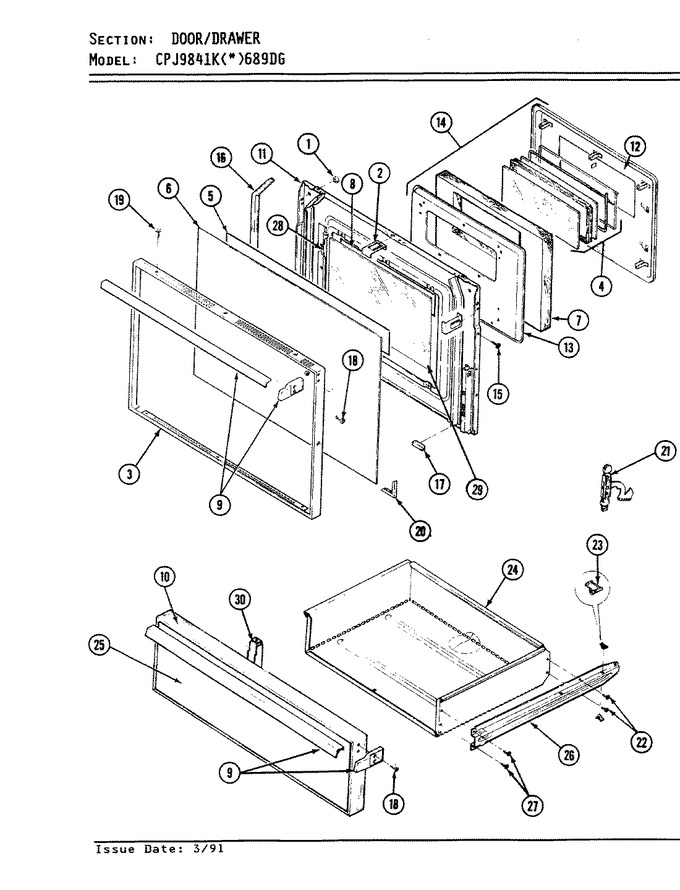

01 - Body
02 - Control Panel
03 - Control/oven
04 - Door/drawer
05 - Internal Controls
06 - Oven
07 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8003P009-60 | Bumper, Door (square) | 1 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 1 |
|
- | ||||
| 3 | 7706P245-60 | Frame, O Door | 1 |
|
- | ||||
| 4 | 5700A091-60 | Window Pak Assy. | 1 |
|
- | ||||
| 4 | 7902S303-60 | Window Pak | 21 |
|
- | ||||
| 5 | 8270P078-60 | Tape, Foil (29 1/2``) | 1 |
|
- | ||||
| 6 | 7902P276-60 | Glass, Door | 1 |
|
- | ||||
| 7 | 4804F006-60 | Insulation Door Pad | 1 |
|
- | ||||
| 8 | 8270P081-60 | Tape, Foil 16 3/16`` | 1 |
|
- | ||||
| 9 | 7701P048-60 | Handle, Storage Drawer | 1 |
|
- | ||||
| 10 | 7101P045-60 | Screw | 1 |
|
- | ||||
| 10 | 7706P196-60 | Frame, Storage Drawer | 1 |
|
- | ||||
| 10 | 7101P114-60 | Screw | 1 |
|
- | ||||
| 11 | 8114P274-60 | Label (cleaning Inst.) | 1 |
|
- | ||||
| 11 | 2402W173-15 | Lining | 1 |
|
- | ||||
| 11 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 1 |
|
$ 9.89 | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 12 | 2410W041-15 | Pad, Door | 1 |
|
- | ||||
| 13 | 2410F016-51 | Pad, Inner | 1 |
|
- | ||||
| 14 | 2410A041-15 | Pad, Assy. | 1 |
|
- | ||||
| 15 | 7107P017-60 | Rivet | 1 |
|
- | ||||
| 16 | 7208P002-60 | Seal | 1 |
|
- | ||||
| 17 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 1 |
|
$ 11.95 | ||||
| 18 | 7101P259-60 | Screw | 1 |
|
- | ||||
| 19 | WP7101P126-60 | Screw, Frame (Replaces: 7101P126-60) | 1 |
|
Immediately | $ 6.85 | |||
| 20 | 8010P045-60 | Spacer, Glass Corner | 1 |
|
- | ||||
| 21 | 3420A033-34 | Stop, Oven Door | 1 |
|
- | ||||
| 22 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 1 |
|
Immediately | $ 6.85 | |||
| 23 | 8016P009-60 | Glide, Drawer | 1 |
|
- | ||||
| 23 | 8016P004-60 | Glide, Drawer | 1 |
|
- | ||||
| 24 | W11233072 | Screw (zinc) (Replaces: 7101P041-60) | 1 |
|
Immediately | $ 12.62 | |||
| 24 | 3405F008-80 | Drawer, Service | 1 |
|
- | ||||
| 25 | 2416F027-70 | Panel, Storage Door Blk | 1 |
|
- | ||||
| 26 | 3406F026-80 | Runner, Inner | 1 |
|
- | ||||
| 27 | 7101P287-60 | Screw, Metal Grounding | 1 |
|
$ 12.03 | ||||
| 28 | 3804F051-80 | Retainer, Glass | 1 |
|
- | ||||
| 29 | 7902P097-60 | Glass, Inner | 1 |
|
$ 63.87 | ||||
| 30 | 3801F115-51 | Bracket, Drawer | 1 |
|
- |
