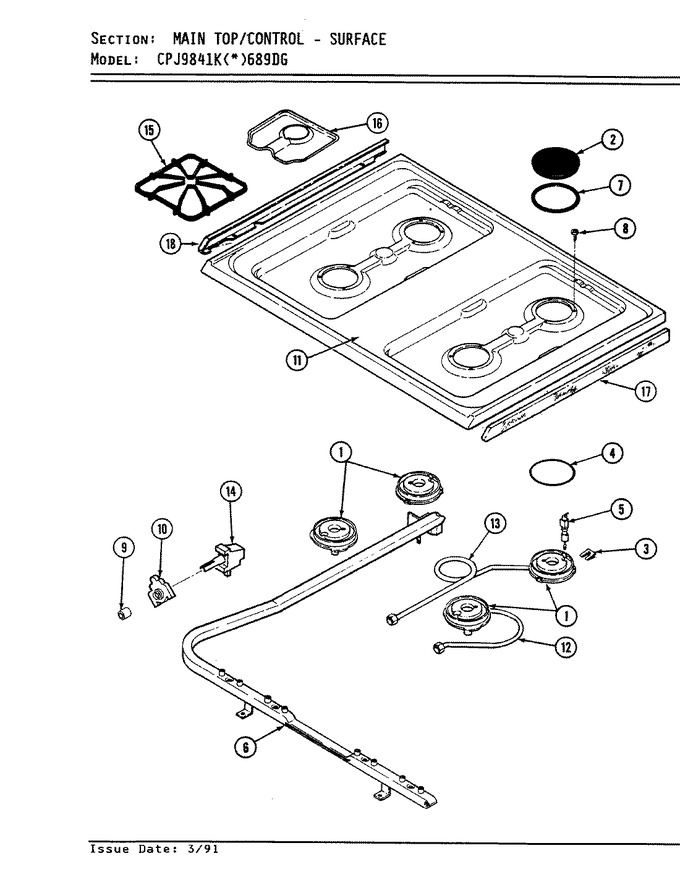

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5415A015-60 | + Nat. Gas Conversion Kit | 1 |
|
- | ||||
| 1 | 7509P034-60 | Orifice, Sealed Burner-nat | 1 |
|
- | ||||
| 1 | 5111A096-60 | Wire Igniter | 1 |
|
- | ||||
| 1 | 5111A095-60 | Wire Igniter | 1 |
|
- | ||||
| 1 | 7505P187-60 | Burner, Top | 1 |
|
- | ||||
| 1 | 5415A016-60 | Lp Conversion Kit | 1 |
|
- | ||||
| 2 | 7504P007-60 | Cap, Surface Burner, Black | 1 |
|
- | ||||
| 3 | 7112P072-60 | Clip | 1 |
|
- | ||||
| 4 | 7201P037-60 | Gasket, Burner | 1 |
|
- | ||||
| 5 | 7432P053-60 | Igniter, Burner | 1 |
|
- | ||||
| 6 | 7513P104-60 | Pipe, Manifold | 1 |
|
- | ||||
| 7 | 2014F001-00 | Ring, Black | 1 |
|
- | ||||
| 8 | 7101P256-60 | Screw | 1 |
|
- | ||||
| 9 | 7214P003-60 | Sleeve | 1 |
|
- | ||||
| 10 | 7403P216-60 | Switch, Top Burner | 1 |
|
- | ||||
| 11 | 2001F063-81 | Top, Main White | 1 |
|
- | ||||
| 11 | 2001F063-90 | Top, Main Blk | 1 |
|
- | ||||
| 12 | 7506P076-60 | Tube, Front Burner | 1 |
|
- | ||||
| 13 | 7506P077-60 | Tube, Rear Burner | 1 |
|
- | ||||
| 14 | 7403P216-60 | Switch, Top Burner | 1 |
|
- | ||||
| 14 | 7502P141-60 | Valve, Top Burner | 1 |
|
- | ||||
| 15 | 7518P014-60 | Grate, Black | 1 |
|
- | ||||
| 16 | 04000043 | Gas Drip Tray Kit----na | 1 |
|
- | ||||
| 17 | 7746P026-60 | Trim, Main Top (right) | 1 |
|
- | ||||
| 18 | 7746P025-60 | Trim, Main Top (left) | 1 |
|
- | ||||
| 18 | M0282009 | Nut (Replaces: 7103P064-60) | 1 |
|
$ 12.06 | ||||
| 18 | WP7101P072-60 | Screw (Replaces: 7101P072-60) | 1 |
|
$ 6.77 |
