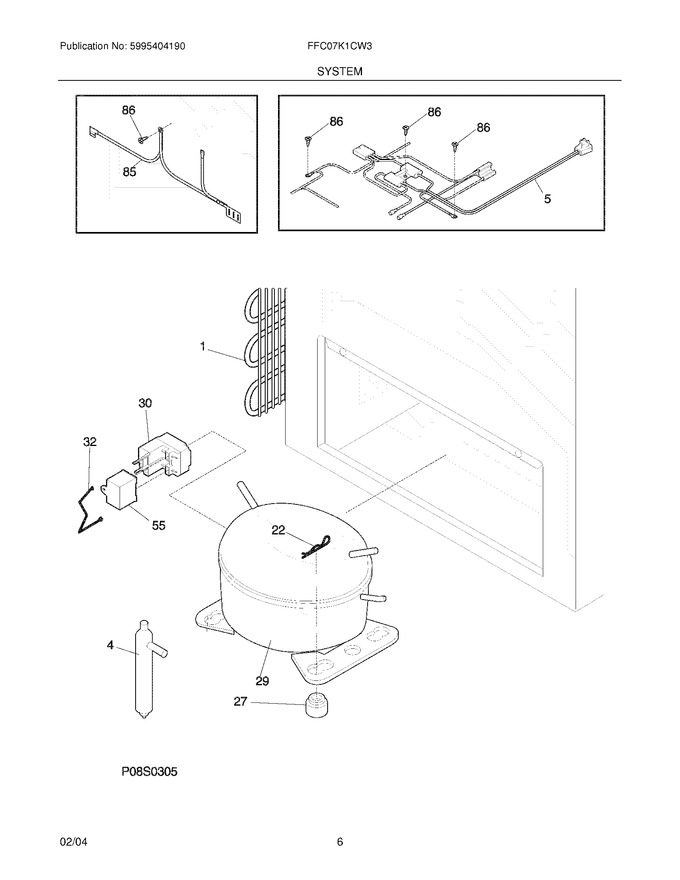

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 22 | 216056400 | Clip,compressor Mtg ,spring |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216649314 | Controller |
|
$ 141.28 | |||||
| 32 | 216649200 | Clip,controller |
|
$ 6.30 | |||||
| 85 | 216818300 | Wire-ground |
|
- | |||||
| 86 | 216707700 | Screw,8-18 X 1/2 |
|
- | |||||
| F1 | 5300120780 | Condenser |
|
- | |||||
| F29 | 5304443412 | Compressor,w/o Electricals (Replaces: 216784200) |
|
$ 856.23 | |||||
| F5 | 216711500 | Harness-main |
|
- | |||||
| F55 | 218909912 | Capacitor-run,220 Vac ,12 Microfarad |
|
Immediately | $ 74.75 |
