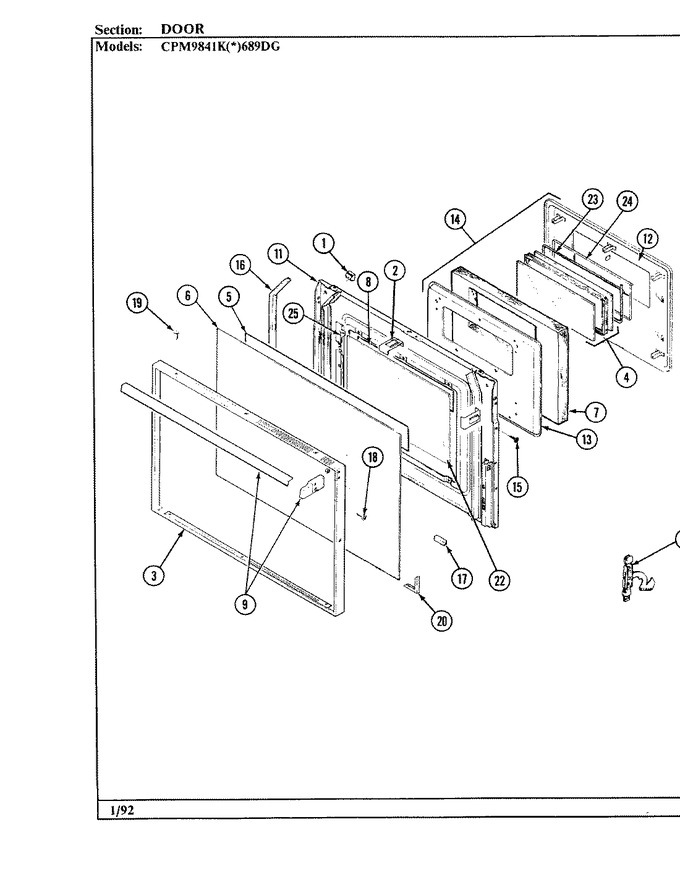

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8003P009-60 | Bumper, Door (square) | 01 |
|
- | ||||
| 2 | 7112P034-60 | Clip, Door | 01 |
|
- | ||||
| 3 | 7706P245-60 | Frame, O Door | 01 |
|
- | ||||
| 4 | 7902S303-60 | Window Pak | 01 |
|
- | ||||
| 5 | 8270P090-60 | Tape, Foil (3`` Wide) | 01 |
|
- | ||||
| 6 | 7902P276-60 | Glass, Door | 01 |
|
- | ||||
| 7 | 4804F006-60 | Insulation Door Pad | 01 |
|
- | ||||
| 8 | 8270P071-60 | Tape, 2`` X 60 Yd Roll | 01 |
|
- | ||||
| 9 | 7701P048-60 | Handle, Storage Drawer | 01 |
|
- | ||||
| 11 | WP7101P126-60 | Screw (Replaces: 7101P061-60) | 01 |
|
Immediately | $ 6.85 | |||
| 11 | 8114P274-60 | Label (cleaning Inst.) | 01 |
|
- | ||||
| 11 | WP7103P114-60 | Nut, Snap (Replaces: 7103P114-60) | 01 |
|
$ 9.89 | ||||
| 11 | 2402W173-19 | Lining | 01 |
|
- | ||||
| 12 | 2410W041-19 | Pad, Door | 01 |
|
- | ||||
| 13 | 2410F016-51 | Pad, Inner | 01 |
|
- | ||||
| 14 | 2410A041-19 | Pad, Assy. | 01 |
|
- | ||||
| 15 | 7107P017-60 | Rivet | 01 |
|
- | ||||
| 16 | 7208P002-60 | Seal | 01 |
|
- | ||||
| 17 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 01 |
|
$ 11.95 | ||||
| 18 | 7101P305-60 | Screw | 01 |
|
- | ||||
| 19 | 7101P276-60 | Screw (blk) | 01 |
|
- | ||||
| 20 | 8010P045-60 | Spacer, Glass Corner | 01 |
|
- | ||||
| 21 | 3420A033-34 | Stop, Oven Door | 01 |
|
- | ||||
| 22 | 7902P097-60 | Glass, Inner | 01 |
|
$ 63.87 | ||||
| 23 | 7201P018-60 | Gasket, Window | 01 |
|
- | ||||
| 24 | 3804F022-45 | Retainer | 01 |
|
- | ||||
| 25 | 3804F051-80 | Retainer, Glass | 01 |
|
- | ||||
| NI | 3804F051-80 | Retainer, Glass | 01 |
|
- |
