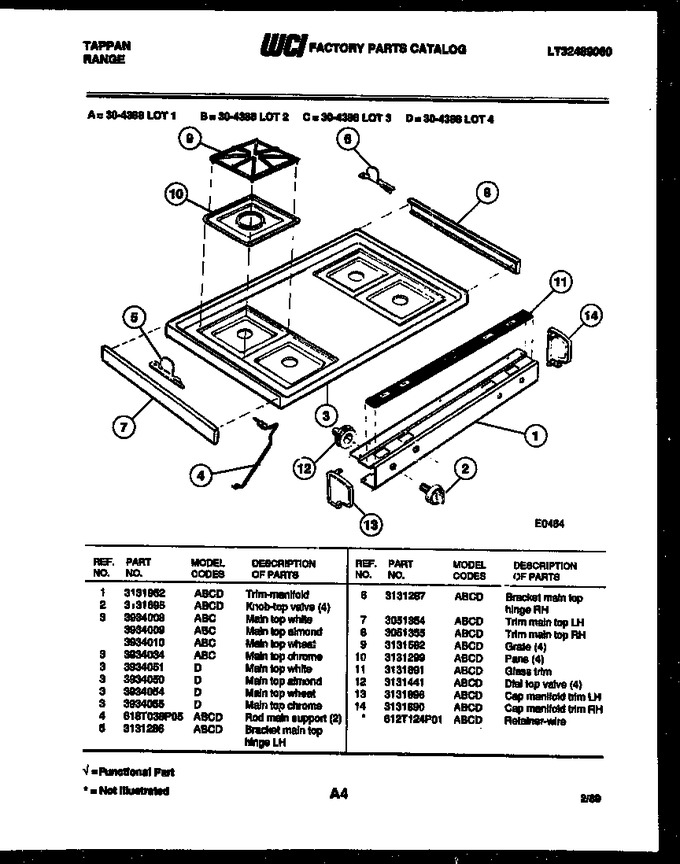

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131952		Trim-manifold		Appelez-nous	-
2	3131695		Knob-top Valve (4)		Appelez-nous	-
3	3934008		Main Top-white		Appelez-nous	-
4	618T038P05		Rod-main Support (2)		Appelez-nous	-
5	3131286		Bracket, Main Top Hinge (lh)		Appelez-nous	-
6	3131287		Bracket, Main Top Hinge (rh)		Appelez-nous	-
7	3051354		Trim, Main Top, Lh		Appelez-nous	-
8	3051355		Trim, Main Top (rh)		Appelez-nous	-
9	3131582		Grate (4)		Appelez-nous	-
10	3131299		Pans (4)		Appelez-nous	-
11	3131891		Glass Trim		Appelez-nous	-
12	3131441		Dial-top Valve\(4)		Appelez-nous	-
13	3131896		Cap Manifold Trim Lh		Appelez-nous	-
14	3131890		Cap Manifold Trim Rh		Appelez-nous	-
*12195	612T124P01		Retainer - Wire		Appelez-nous	-
