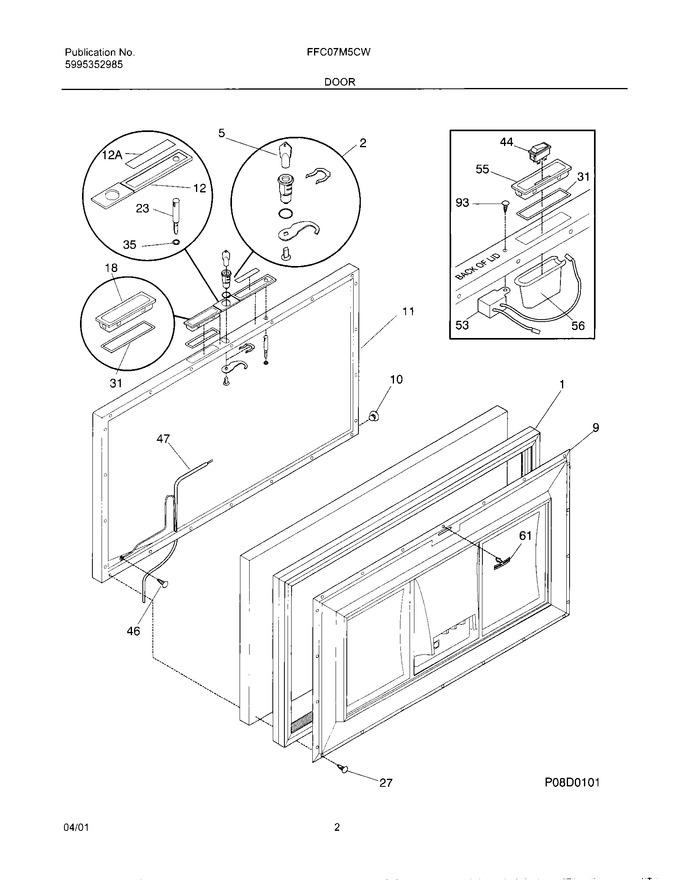

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216480901 | Gasket-door,white |
|
$ 107.26 | |||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 5 | 297147700 | Key, Lock (Replaces: 216702900) |
|
Immediately | $ 7.57 | ||||
| 9 | 216067300 | Panel-inner Door/lid, White |
|
- | |||||
| 10 | 216141101 | Plug Button, White |
|
$ 2.57 | |||||
| 11 | 216113119 | Panel-outer Lid,white |
|
- | |||||
| 12 | 216683000 | Insert-bezel |
|
- | |||||
| 12 | 216208100 | Bezel, Nameplate |
|
- | |||||
| 18 | 216140200 | Handle, Recessed, White |
|
- | |||||
| 23 | 3200895 | Light, Signal, Round, Amber |
|
- | |||||
| 27 | 5303212828 | Clip,panel |
|
$ 16.63 | |||||
| 31 | 08009392 | Gasket, White |
|
- | |||||
| 35 | 5303297015 | Washer, Signal Light |
|
- | |||||
| 44 | 5303017178 | Switch-rocker |
|
- | |||||
| 46 | 216707800 | Screw,ph ,8-32 X 1/2 ,wiring Harness |
|
- | |||||
| 47 | 216552700 | Harness,electrical |
|
- | |||||
| 53 | 5303208483 | Buzzer, Alarm |
|
- | |||||
| 55 | 216164000 | Housing, Switch |
|
- | |||||
| 56 | 216694200 | Sealing Cap |
|
- | |||||
| 61 | 5309948955 | Clip-panel |
|
$ 11.53 | |||||
| 93 | 216858001 | Screw (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| NI | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
