SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet

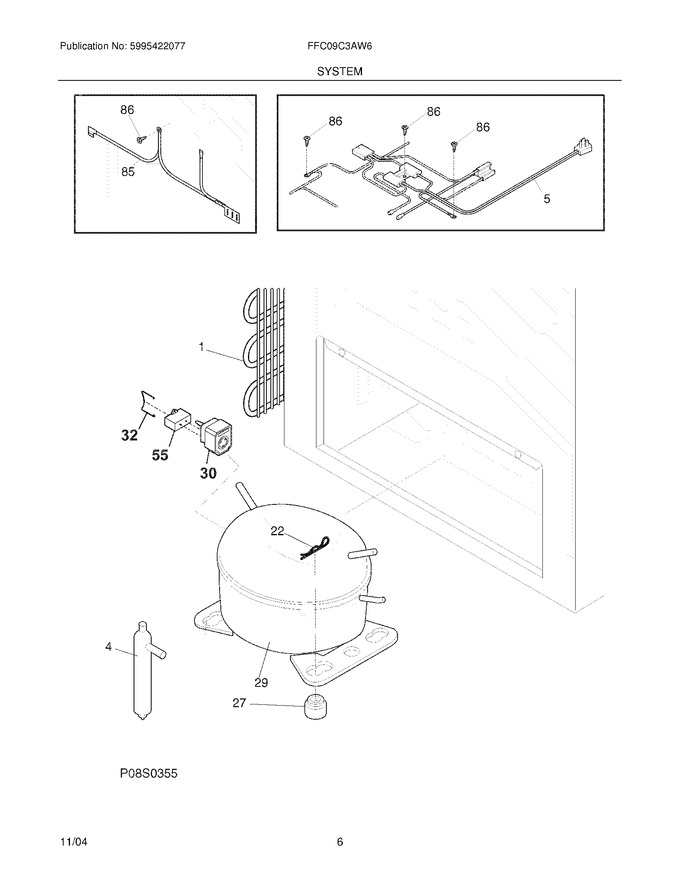

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
22	216056400		Clip,compressor Mtg ,spring		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954200		Controller,compressor ,5 Speed				$ 63.79
32	216954300		Clip,controller				$ 17.01
55	297286812		Capacitor-run   (Replaces: 218909911)			Immediately	$ 11.78
85	216818300		Wire-ground		Appelez-nous	-
86	216707700		Screw,8-18 X 1/2		Appelez-nous	-
F1	5300120781		Condenser		Appelez-nous	-
F29	5304507767		Compressor,w/o Electricals   (Replaces: 216966300)				$ 726.41
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	216952300		Harness-main		Appelez-nous	-
NI	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
