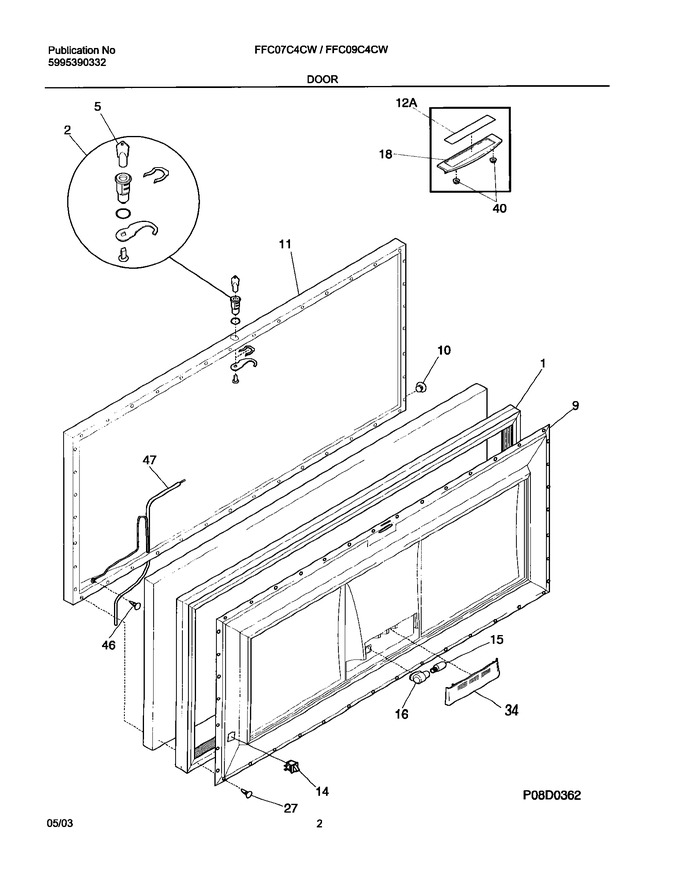

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481001		Gasket-door, White				$ 202.00
2	5303925107		Lock Assy		Appelez-nous	-
9	216829800		Panel-lid				$ 121.38
10	216141101		Plug Button, White				$ 2.57
11	216117935		Lid,white				$ 261.19
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
18	216446600		Handle				$ 43.42
27	5303212828		Clip,panel Mtg				$ 16.63
34	5303296969		Shield,lid Lamp		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
46	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
12A	216816801		Insert-nameplate				$ 29.61
F14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
F16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
F47	216915300		Harness-lid				$ 53.35
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
