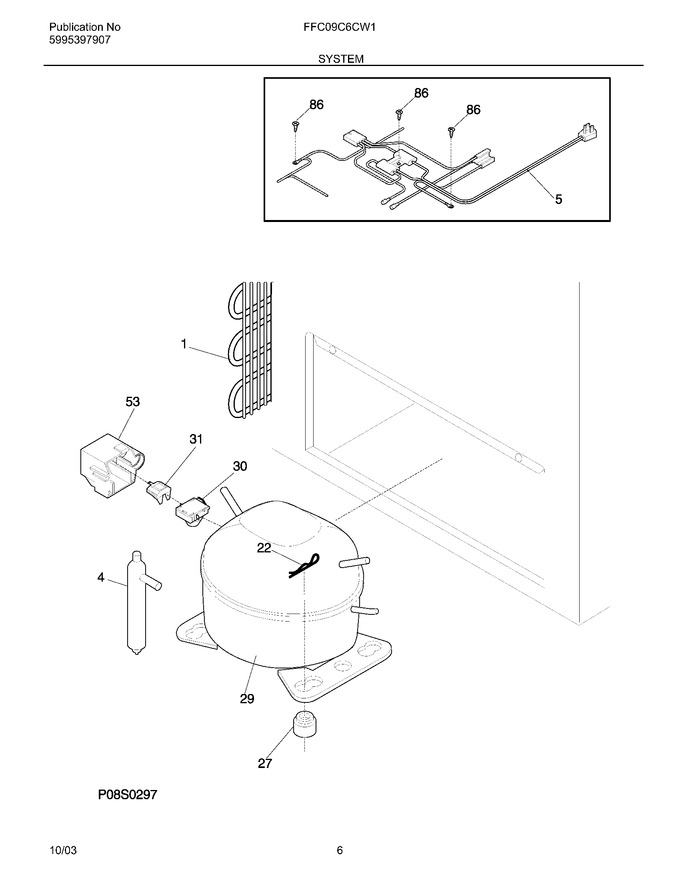

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5303305677 | Drier-filter (Replaces: 216634500) |
|
Immediately | $ 31.67 | ||||
| 22 | 216056400 | Clip,compressor Mtg ,spring |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 30 | 216888500 | Starter,relay |
|
$ 104.53 | |||||
| 31 | 216100113 | Overload Protector |
|
$ 169.63 | |||||
| 53 | 216347800 | Cover Terminal,cover-comp Term |
|
- | |||||
| 86 | 216707800 | Screw,ph ,8-32 X 1/2 ,wiring Harness |
|
- | |||||
| F1 | 5300120781 | Condenser |
|
- | |||||
| F29 | 216888300 | Compressor,w/o Electricals |
|
- | |||||
| F5 | 216927700 | Harness-ext,main |
|
$ 50.61 |
