02 - Door

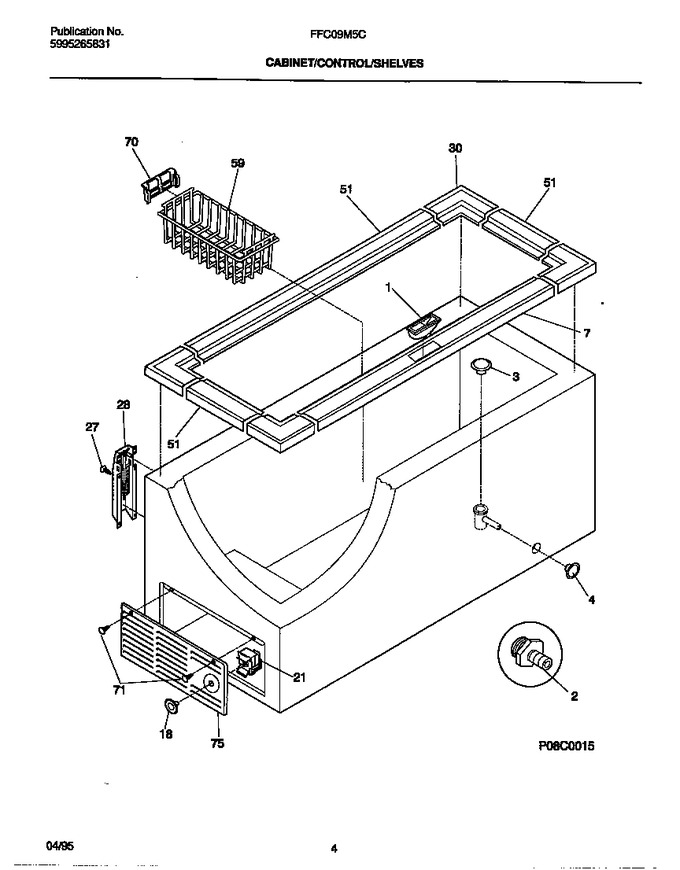

03 - Cabinet/control/shelves


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216117700		Support Lock		Appelez-nous	-
1	5303925317		Condenser		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	5306593887		Plug-drain, White		Appelez-nous	-
4	5303305677		Drier-filter			Immediately	$ 31.67
4	216073900		Plug, Drain		Appelez-nous	-
5	216375400		Harness-wire		Appelez-nous	-
7	216117600		Breaker, Lock Side		Appelez-nous	-
18	216034505		Knob, Control, White		Appelez-nous	-
21	216375500		Control-temperature		Appelez-nous	-
22	216056400		Clip, Spring Mtg		Appelez-nous	-
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
27	5309950602		Screw Hinge				$ 5.30
28	216119201		Hinge Assy		Appelez-nous	-
29	5304443412		Compressor, Service   (Replaces: 5303925314)				$ 856.23
30	216347700		Starter, Ptc		Appelez-nous	-
30	216105500		Breaker, White, Corners				$ 46.83
31	216100105		Overload				$ 137.92
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
51	216117500		Breakers, White, Hinge/side		Appelez-nous	-
53	216347800		Cover, Compressor		Appelez-nous	-
59	216142600		Basket		Appelez-nous	-
70	216375100		Handle, Teal, Basket		Appelez-nous	-
71	08006547		Screw		Appelez-nous	-
75	216329402		Panel-access,white		Appelez-nous	-
*59121	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
