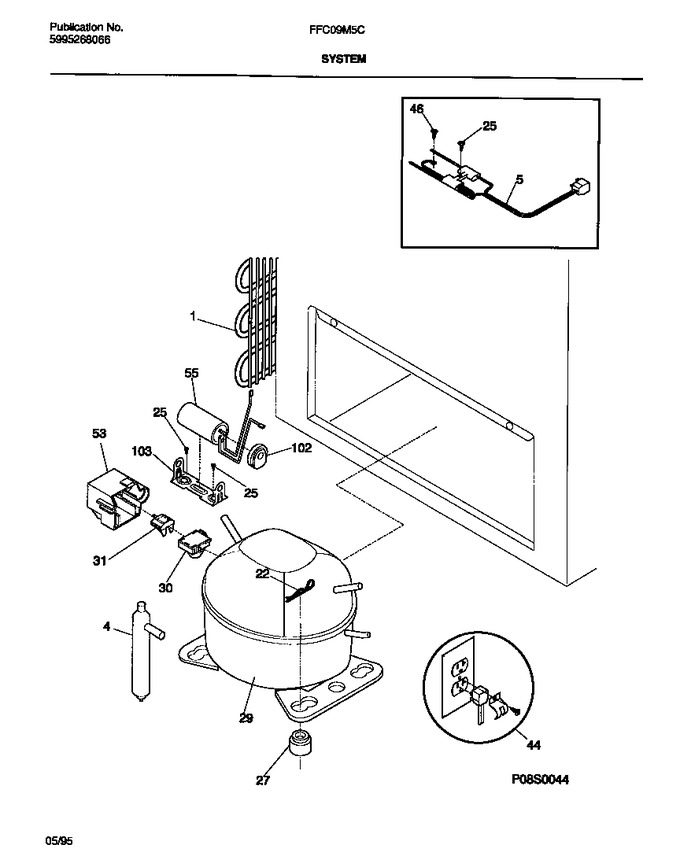

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925317		Condenser		Appelez-nous	-
4	5303305677		Drier-filter			Immediately	$ 31.67
22	216056400		Clip, Spring Mtg		Appelez-nous	-
25	216022800		Screw, Washer Head, 8, 18 X 1/2		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
29	5304443412		Compressor, Service   (Replaces: 5303925314)				$ 856.23
30	216386600		Starter-ptc		Appelez-nous	-
31	216100105		Overload				$ 137.92
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
53	216347800		Cover, Compressor		Appelez-nous	-
55	216386400		Capacitor-run		Appelez-nous	-
102	216386800		Cap-capacitor		Appelez-nous	-
103	216386700		Bracket-capacitor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
