01 - Controls/basepan


02 - Door


03 - Electrical Components


04 - Light/power Cord


05 - Magnetron/stirrer Motor


06 - Splash Shield/blower

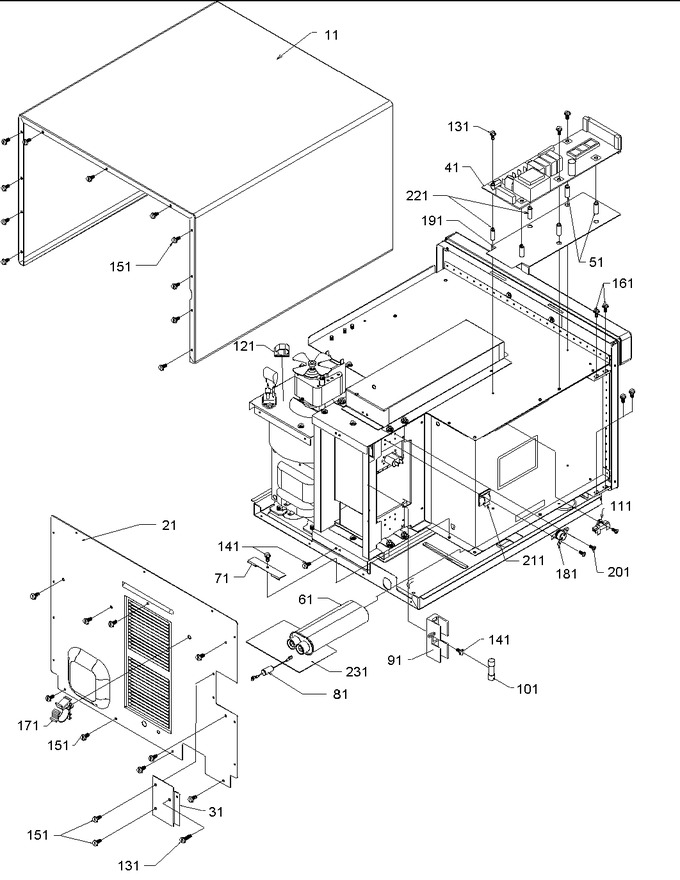

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12114002		Wrapper, Outercase		Appelez-nous	-
21	12296802		Access Pan-e Ct		Appelez-nous	-
31	12131204		Lamp Cover-e Ct		Appelez-nous	-
41	12100307		Board Hv/lv		Appelez-nous	-
51	M0800601		Spacer		Appelez-nous	-
61	59001651		Capacitor-.80   (Replaces: D8547929)				$ 43.15
71	12132502		Strap-capacitor		Appelez-nous	-
81	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
91	10091101		Fuse Holder		Appelez-nous	-
101	14QBP25BAN		Fuse, 25 Amp   (Replaces: M0805201)		Appelez-nous	-
111	B5795302		Thermal Cut Out		Appelez-nous	-
121	M0104102		Clip, Cord				$ 8.10
131	M0216525		Screw		Appelez-nous	-
141	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
151	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
161	M0253540		Screw-tc		Appelez-nous	-
171	M0118704		Clip, Guide		Appelez-nous	-
181	B5684121		Cut Out, Thermal				$ 9.17
191	12150001		Barrier-pc Board		Appelez-nous	-
201	WP488234		Screw   (Replaces: M0234422)				$ 6.07
211	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
221	M0800602		Spacer		Appelez-nous	-
231	12222901		Barrier-capacitor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
