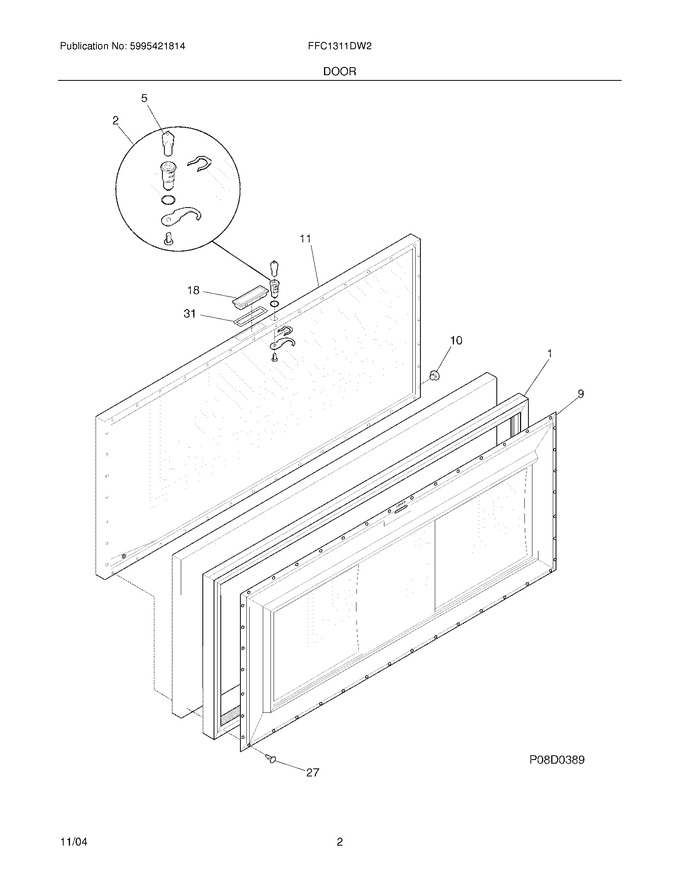

03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216481101 | Gasket-door, White |
|
$ 224.81 | |||||
| 2 | 5303925107 | Lock Assy |
|
- | |||||
| 9 | 216056904 | Panel-inner Lid, White |
|
- | |||||
| 10 | 216923001 | Plug Button,1/4``,white |
|
$ 9.87 | |||||
| 11 | 216129801 | Panel-outer Lid,white |
|
- | |||||
| 18 | 216140200 | Handle, Recessed, White |
|
- | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 31 | 08009392 | Gasket, White |
|
- | |||||
| F5 | 297147700 | Key, Lock (Replaces: 216702900) |
|
Immediately | $ 7.57 | ||||
| NI | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| NI | 5303313518 | Washer, Sealing |
|
- | |||||
| NI | 216858000 | Screw,thno.8-18x.500ab,no.10 |
|
- |
