Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 216481101 Gasket-door, White Special Order $ 224.81

9 216056904 Panel-inner Lid, White Appelez-nous -
10 216141101 Plug Button, White Special Order $ 2.57

11 216129802 Panel-outer Door/lid,white Appelez-nous -
18 216446600 Handle Special Order $ 43.42

27 5303212828 Clip,panel Special Order $ 16.63

40 5309948647 Fastener, Handle Appelez-nous -
12A 216816800 Nameplate Appelez-nous -
F2 5303925107 Lock Assy Appelez-nous -
F5 297147700 Key, Lock   (Replaces: 216702900) In-Stock Immediately $ 7.57

NI 5303917276 Insulation Special Order $ 330.91

NI 5309948955 Clip-panel Special Order $ 11.53


    View Diagram in Separate Window     Print Icon   Print Part List

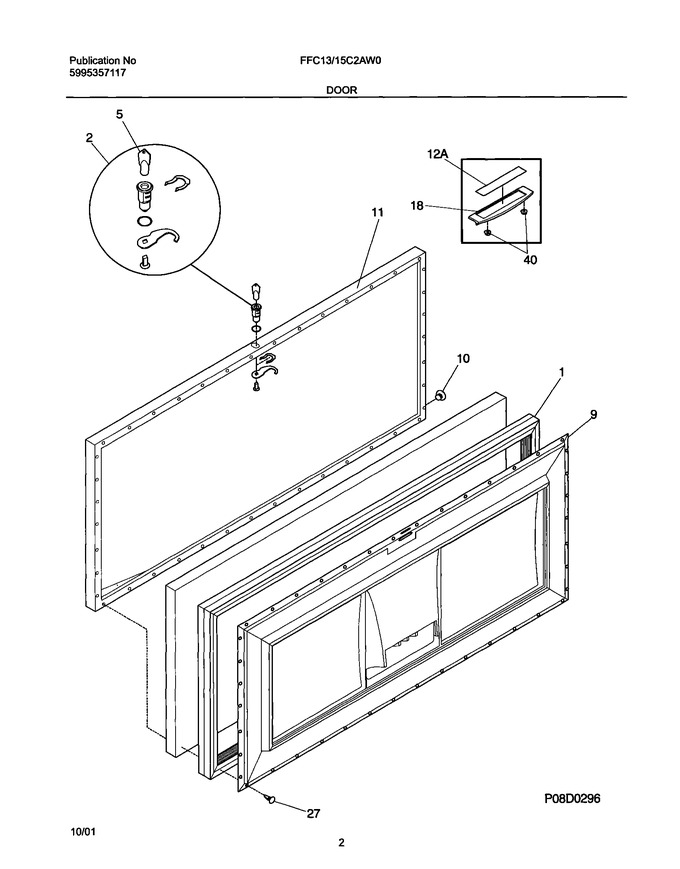

Diagram for FFC13C2AW0
