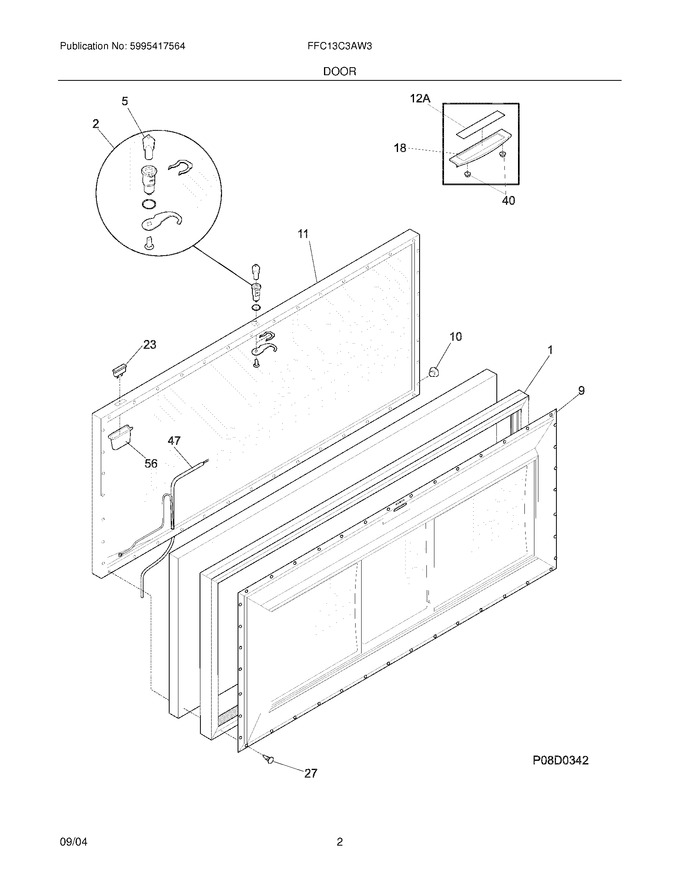

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481101		Gasket-door, White				$ 224.81
2	5303925107		Lock Assy		Appelez-nous	-
9	216056904		Panel-inner Lid, White		Appelez-nous	-
10	216923001		Plug Button,1/4``,white				$ 9.87
11	216129821		Lid,white				$ 222.29
18	216446600		Handle				$ 43.42
23	5308002706		Light-signal,amber				$ 39.11
27	5303212828		Clip,panel Mtg				$ 16.63
40	216922700		Fastener,.330 Dia Stud ,handle ,(2)				$ 12.05
47	216823700		Harness-lid/defrost				$ 62.21
56	216694200		Cap,sig Light Seal		Appelez-nous	-
12A	216816801		Insert-nameplate				$ 29.61
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 10.85
NI	5303313518		Washer, Sealing		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
