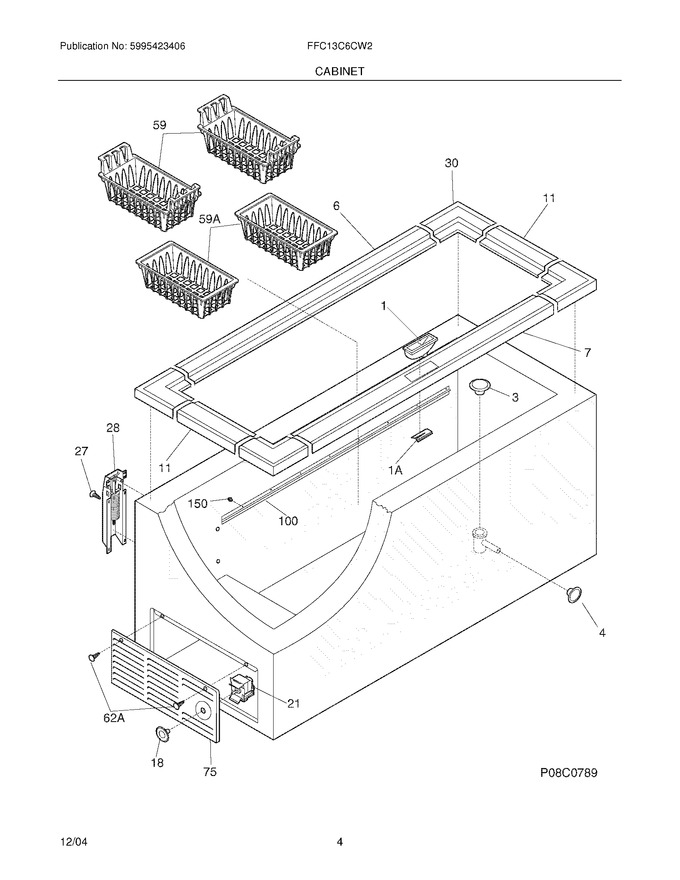

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216909800		Catch-lock,white				$ 54.92
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013605		Plug,drain ,blue ,exterior				$ 8.66
6	216955503		Breaker,plain ,white ,hinge Side				$ 8.32
7	216955502		Breaker,lock Side		Appelez-nous	-
11	216955500		Breaker,chest End ,(2)				$ 15.75
18	216707200		Knob,temp Control				$ 44.10
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
28	216039600		Hinge		Appelez-nous	-
30	216110700		Breaker Corners				$ 28.45
59	216916200		Basket,upper ,(2)				$ 31.92
75	216034301		Panel-access, White				$ 103.01
100	216995206		Track-basket		Appelez-nous	-
150	216997400		Support,track-basket				$ 10.61
1A	216818900		Support,lock Catch Clip				$ 12.65
59A	216867400		Basket,lower ,(2)				$ 61.09
62A	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
F21	216714601		Control Temperature				$ 143.87
NI	216794106		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
