SELECT A DIAGRAM

01 - Cover


03 - Door

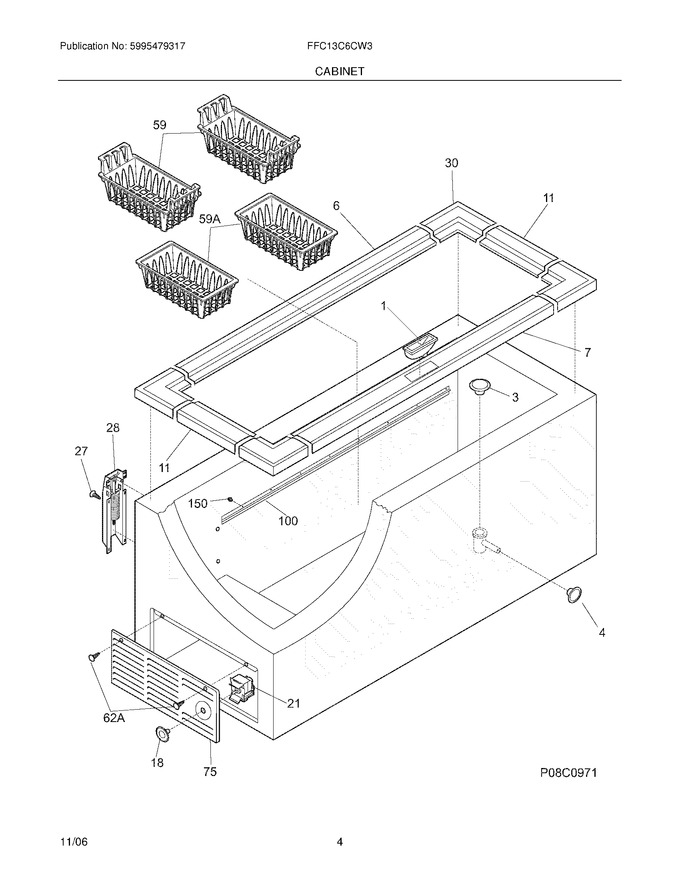

05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216954500		Catch-lock				$ 19.16
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	297013600		Plug-drain,exterior				$ 9.98
6	216955503		Breaker,plain ,white ,hinge Side				$ 8.32
7	297129100		Breaker,lock Side ,w/lock Catch				$ 32.13
11	216955500		Breaker,chest End ,(2)				$ 15.75
18	216707200		Knob,temp Control				$ 44.10
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
28	216039600		Hinge		Appelez-nous	-
30	216110700		Breaker Corners				$ 28.45
59	216916200		Basket,upper ,(2)				$ 31.92
75	216034301		Panel-access, White				$ 103.01
100	216995200		Track-basket		Appelez-nous	-
150	216997400		Support,track-basket				$ 10.61
59A	216867400		Basket,lower ,(2)				$ 61.09
62A	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
F21	216714601		Control Temperature				$ 143.87
NI	216794106		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
