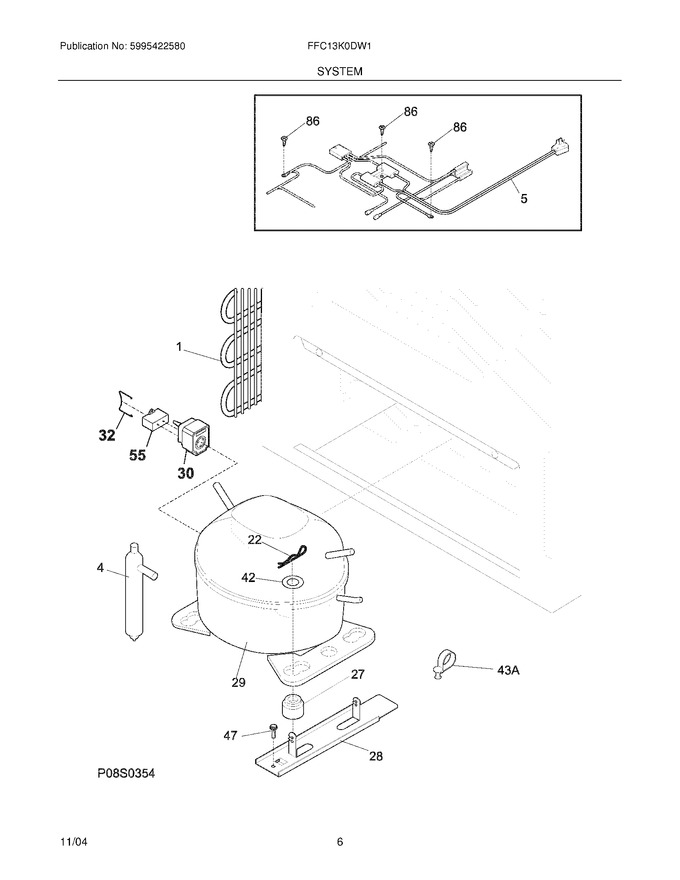

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 22 | 216056400 | Clip,compressor Mtg ,spring |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 13.01 | |||||
| 28 | 5303212615 | Support, Compressor |
|
- | |||||
| 30 | 241707705 | Controller,compressor (Replaces: 216954201) |
|
$ 60.25 | |||||
| 32 | 216954300 | Clip,controller |
|
$ 17.01 | |||||
| 42 | 216232700 | Washer,flat ,1``od X 0.531``id |
|
- | |||||
| 47 | 216629601 | Screw,hex Washer Head ,10-16 X 0.500 ,tapping (Replaces: 216629600) |
|
$ 13.01 | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909913) |
|
Immediately | $ 35.38 | ||||
| 86 | 216036600 | Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming |
|
- | |||||
| 43A | 5303212614 | Clip,harness Mount |
|
$ 2.88 | |||||
| F1 | 5303925238 | Condenser |
|
$ 467.78 | |||||
| F29 | 5304507765 | Compressor,w/o Electricals (Replaces: 216977300) |
|
Immediately | $ 677.23 | ||||
| F4 | 5303305677 | Drier-filter (Replaces: 216938600) |
|
Immediately | $ 31.67 | ||||
| F5 | 216987300 | Harness-main |
|
- |
