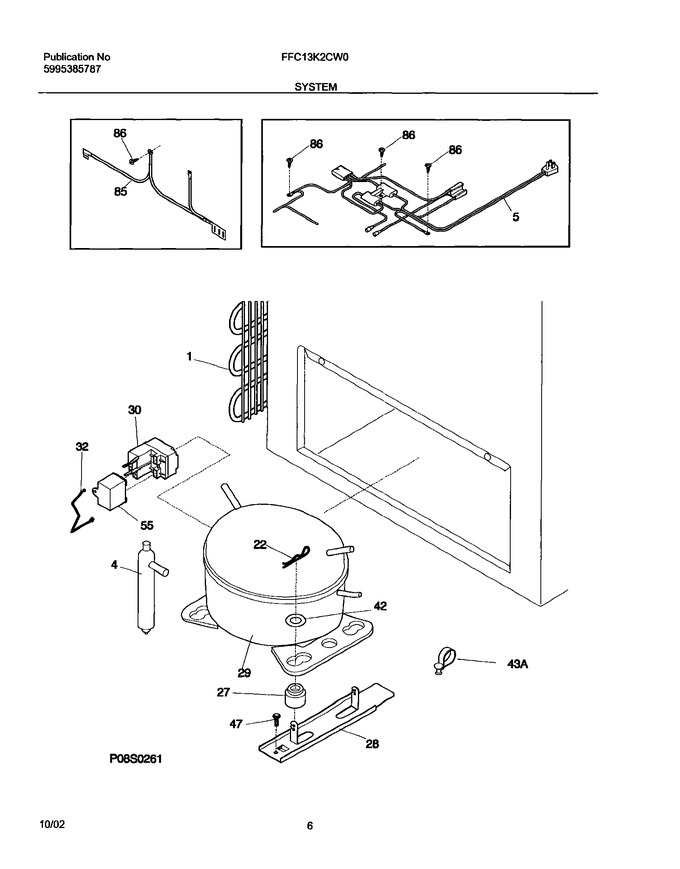

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303925238		Condenser				$ 467.78
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216806900		Harness-main				$ 182.65
22	216056400		Clip,compressor Mtg ,spring		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
28	5303212615		Support, Compressor		Appelez-nous	-
30	216649319		Controller				$ 64.58
32	216694500		Clip,controller		Appelez-nous	-
42	216232700		Washer,flat ,1``od X 0.531``id		Appelez-nous	-
47	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
85	216533500		Wire,ground		Appelez-nous	-
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
43A	5303212614		Clip,harness Mount				$ 2.88
F29	5304507765		Compressor,w/o Electricals   (Replaces: 216856700)			Immediately	$ 677.23
F55	5304464438		Capacitor,run ,50/60 Hz ,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38

    View Diagram in Separate Window       Print Part List
