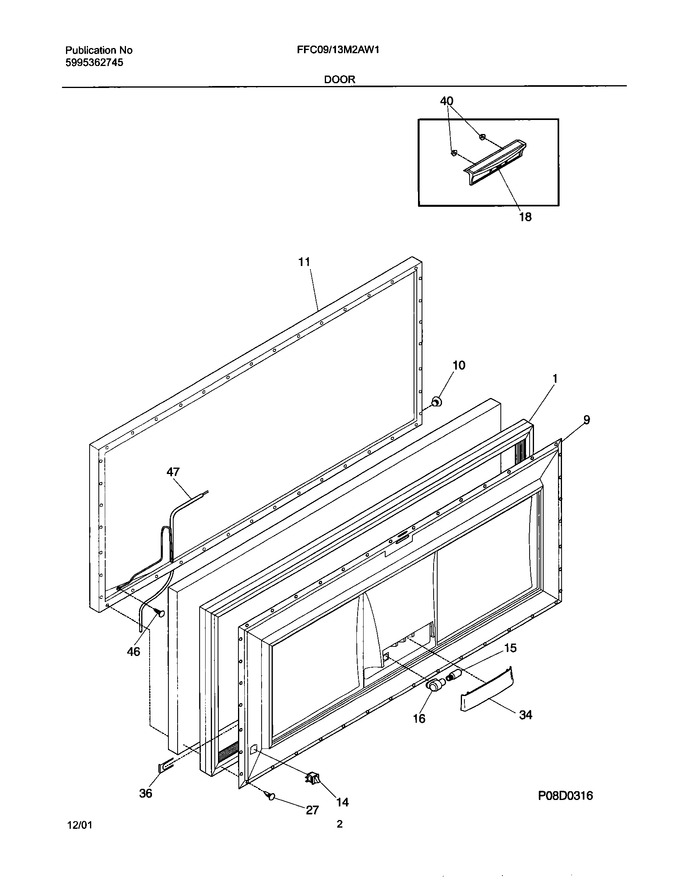

SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481101		Gasket-door, White				$ 224.81
9	216828906		Panel-lid		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216129819		Panel-lid		Appelez-nous	-
14	216822900		Light/lamp, Ramp			Immediately	$ 70.16
16	297139501		Light/lamp,indicator   (Replaces: 216817600)				$ 19.52
27	5303212828		Clip,panel				$ 16.63
34	216160400		Shield-light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
46	216707800		Screw,ph ,8-32 X 1/2 ,wiring Harness		Appelez-nous	-
47	216792200		Harness-lid/defrost		Appelez-nous	-
F15	5304517886		Lamp,light Bulb ,40 W ,120 V   (Replaces: 216608600)			Immediately	$ 73.06
NI	5303917276		Insulation				$ 330.91

    View Diagram in Separate Window       Print Part List
