Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 216481211 Gasket-door, White   (Replaces: 216481201) Special Order $ 204.03

9 216057804 Panel-inner Lid, White Special Order $ 140.44

10 216141101 Plug Button, White Special Order $ 2.57

11 216129920 Lid,white Special Order $ 313.11

18 216446600 Handle Special Order $ 43.42

23 5308002706 Light-signal,amber Special Order $ 39.11

27 5303212828 Clip,panel Special Order $ 16.63

40 5309948647 Fastener, Handle Appelez-nous -
46 216707800 Screw,ph ,8-32 X 1/2 ,wiring Harness Appelez-nous -
47 216823700 Harness-lid/defrost Special Order $ 62.21

56 216694200 Sealing Cap Appelez-nous -
12A 216816801 Nameplate Special Order $ 29.61

F2 5303925107 Lock Assy Appelez-nous -
F5 297147700 Key, Lock   (Replaces: 216702900) In-Stock Immediately $ 7.57

NI 5303917276 Insulation Special Order $ 330.91


    View Diagram in Separate Window     Print Icon   Print Part List

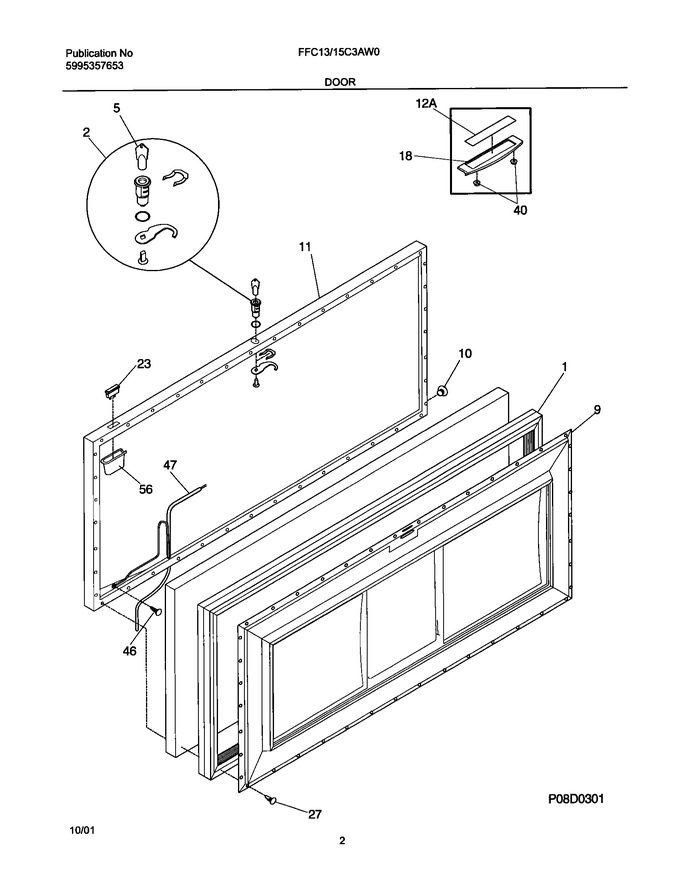

Diagram for FFC15C3AW0
