SELECT A DIAGRAM

01 - Cover


03 - Door


05 - Cabinet


07 - System

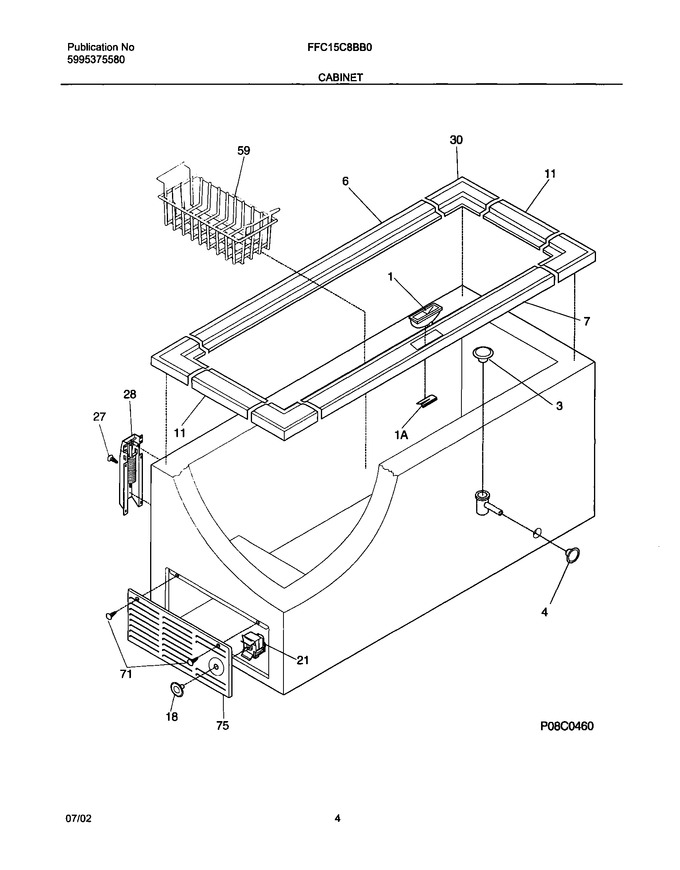

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216873900		Latch-door		Appelez-nous	-
3	216502600		Plug-drain,interior ,interior			Immediately	$ 17.35
4	216073906		Plug-drain,exterior		Appelez-nous	-
6	216111005		Breaker,hinge Side		Appelez-nous	-
7	216111605		Breaker,lock Side		Appelez-nous	-
11	216110805		Breaker,black ,ends		Appelez-nous	-
18	216873600		Knob-control		Appelez-nous	-
27	216629601		Screw-hinge   (Replaces: 216629600)				$ 13.01
28	216035202		Hinge		Appelez-nous	-
30	216110705		Breaker,black ,corners		Appelez-nous	-
59	216080300		Basket		Appelez-nous	-
71	5303302714		Screw, 8, 18 X 3/4, (2)		Appelez-nous	-
75	216034303		Panel-access,black		Appelez-nous	-
1A	216818900		Support-lock				$ 12.65
F21	216714600		Control-temperature				$ 132.30
NI	216802800		Owners Guide				$ 21.98

    View Diagram in Separate Window       Print Part List
