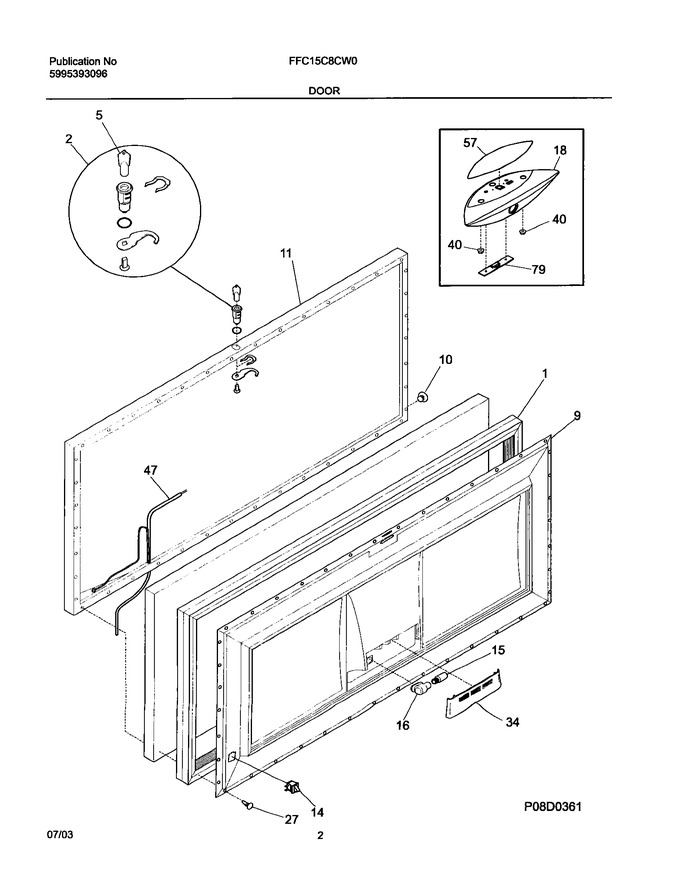

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket-door, White   (Replaces: 216481201)				$ 204.03
2	5303925107		Lock Assy		Appelez-nous	-
9	216829104		Panel-lid				$ 173.57
10	216141101		Plug Button, White				$ 2.57
11	216129938		Panel-outer Door,white		Appelez-nous	-
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 70.16
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 73.06
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 19.52
18	216897600		Handle,white				$ 60.58
27	5303212828		Clip,panel Mtg				$ 16.63
34	216578502		Shield,light		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
57	216899500		Overlay,white		Appelez-nous	-
F47	216889600		Harness-lid				$ 184.91
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
F79	216898700		Control Board,electronic				$ 58.59
NI	216905300		Screw,control Board ,no.3-24 X .25		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91

    View Diagram in Separate Window       Print Part List
