SELECT A DIAGRAM

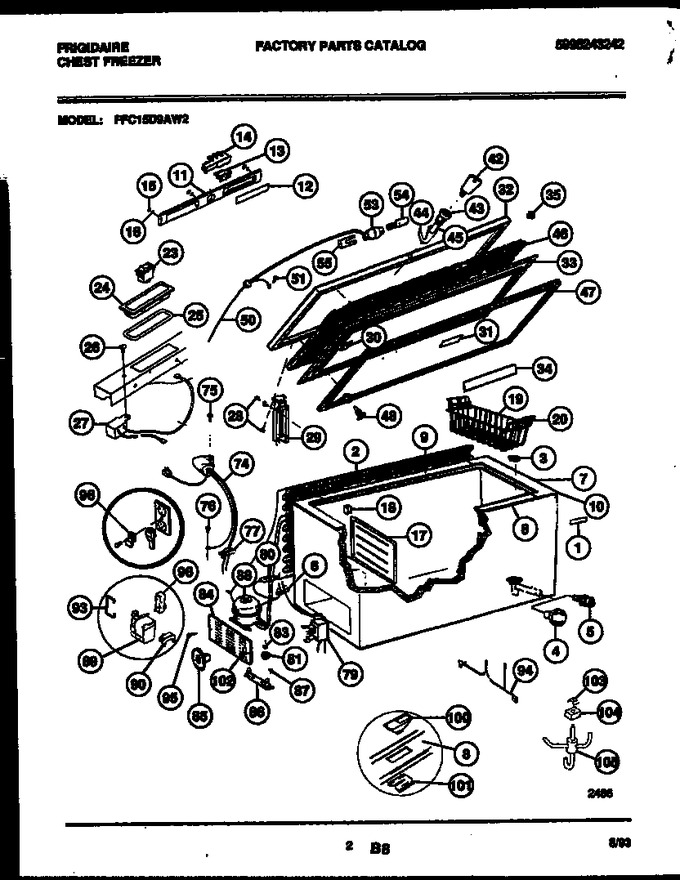

02 - Chest Freezer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215008601		Nameplate		Appelez-nous	-
2	5303280307		Condenser (not Original Equipment-service Replacement On				$ 640.71
3	216208300		Plug-drain Liner		Appelez-nous	-
4	5300128045		Plug-drain Shell		Appelez-nous	-
5	06594053		Adapter, Hose		Appelez-nous	-
6	06599967		Grommet		Appelez-nous	-
7	216110800		Breaker Ends		Appelez-nous	-
8	216111600		Breaker Front		Appelez-nous	-
9	216111000		Breaker Rear		Appelez-nous	-
10	216110700		Breaker Corners				$ 28.45
11	216180800		Handle		Appelez-nous	-
12	216209300		Lens		Appelez-nous	-
13	3201504		Switch, Monitor		Appelez-nous	-
14	530329000		Monitor		Appelez-nous	-
15	3206024		Retainer (3)		Appelez-nous	-
16	5303297015		Washer (3)		Appelez-nous	-
17	216128200		Divider-drain Pan		Appelez-nous	-
18	5306594584		Supports Divider				$ 19.80
19	216080600		Basket (2)				$ 95.29
20	216208500		Handle, Basket, Red		Appelez-nous	-
23	5303017178		Switch		Appelez-nous	-
24	216164000		Housing, Switch		Appelez-nous	-
25	08009392		Gasket		Appelez-nous	-
26	5303272319		Screw		Appelez-nous	-
27	5303208483		Buzzer, Alarm		Appelez-nous	-
28	5309950602		Screw Hinge				$ 5.30
29	297321900		Hinge   (Replaces: 216035200)				$ 90.01
30	3201509		Switch-defrost		Appelez-nous	-
31	216209500		Label, Defrost		Appelez-nous	-
32	216129907		Lid, Panel		Appelez-nous	-
33	216057900		Panel, Inner Lid		Appelez-nous	-
34	216087900		Light Shield				$ 13.13
35	216141101		Plug-lid				$ 2.57
42	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
43	53032925107		Lock, Complete		Appelez-nous	-
44	5300300791		Hook		Appelez-nous	-
45	5300114366		Washer-lock		Appelez-nous	-
46	5300128901		Insulation Lid		Appelez-nous	-
47	216481211		Gasket Lid-white   (Replaces: 216079900)				$ 204.03
48	5303212828		Clip Panel (38)				$ 16.63
50	216040500		Wire Harness Lid		Appelez-nous	-
51	216858001		Screw-ground Wire   (Replaces: 5303161215)			Immediately	$ 10.85
53	216039700		Socket-light		Appelez-nous	-
54	5304517886		Bulb-120v 25w   (Replaces: 216222700)			Immediately	$ 73.06
55	5306599968		Retainer Socket		Appelez-nous	-
57	5303297015		Washer-sealing		Appelez-nous	-
58	3200895		Signal Light		Appelez-nous	-
74	216090100		Wiring Harness With Power Cord		Appelez-nous	-
75	08009412		Screw		Appelez-nous	-
76	08009412		Screw		Appelez-nous	-
77	5303212614		Clip Wires				$ 2.88
79	216161200		Control, Temperature		Appelez-nous	-
80	5303305677		Drier   (Replaces: 5308000027)			Immediately	$ 31.67
81	215175000		Grommet, Compressor (4)		Appelez-nous	-
83	216056400		Clip Compr (4)		Appelez-nous	-
84	216022700		Access Panel		Appelez-nous	-
85	216034505		Control Knob		Appelez-nous	-
86	5303212615		Support, Compressor (2)		Appelez-nous	-
87	08016776		Screw-support (2)		Appelez-nous	-
88	216138400		Compressor		Appelez-nous	-
89	216008900		Relay		Appelez-nous	-
90	5303206885		Overload				$ 119.23
93	216147800		Clamp Cover		Appelez-nous	-
94	5303294326		Ground Wire		Appelez-nous	-
95	216858001		Screw-access Panel   (Replaces: 5303161215)			Immediately	$ 10.85
96	08016777		Retainer Power Cord		Appelez-nous	-
98	5304464438		Run Capacitor   (Replaces: 216236300)			Immediately	$ 35.38
100	5303208488		Latch Catch		Appelez-nous	-
101	216080800		Support-latch		Appelez-nous	-
102	5303208663		Plug-indicator		Appelez-nous	-
103	3201513		Clip		Appelez-nous	-
104	3201514		Solenoid		Appelez-nous	-
105	216161900		Valve		Appelez-nous	-
51A	3201521		Harness, Light Switch (non-illustrated)		Appelez-nous	-
87A	216232700		Washer-compressor (non-illustrated)		Appelez-nous	-
