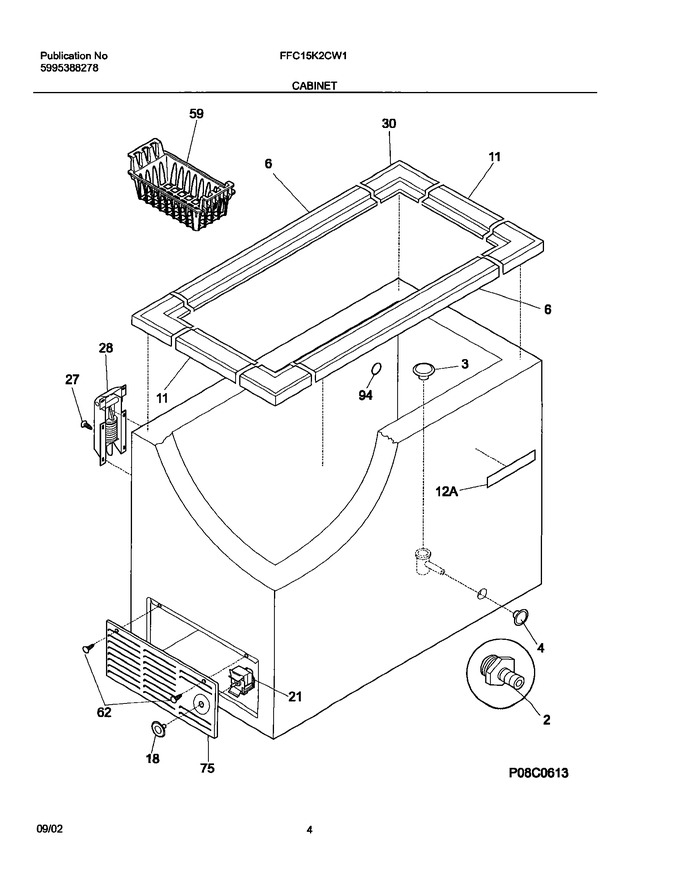

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	216269500		Adapter, Drain Hose				$ 14.81
3	216502600		Plug-drain,interior			Immediately	$ 17.35
4	216073900		Plug-drain,exterior		Appelez-nous	-
6	216111000		Breaker,plain ,white		Appelez-nous	-
11	216110800		Breaker,chest End ,(2)		Appelez-nous	-
18	216707200		Knob,temp Control				$ 44.10
27	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 13.01
28	297321900		Hinge   (Replaces: 216035200)				$ 90.01
30	216110700		Breaker Corners				$ 28.45
59	216867300		Basket,upper ,(2)		Appelez-nous	-
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
75	216034301		Panel-access, White				$ 103.01
94	216140400		Lens,frost Indicator ,blue				$ 1.42
12A	216892800		Nameplate		Appelez-nous	-
F21	216714601		Control Temperature				$ 143.87
NI	216794209		Energy Guide		Appelez-nous	-
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
