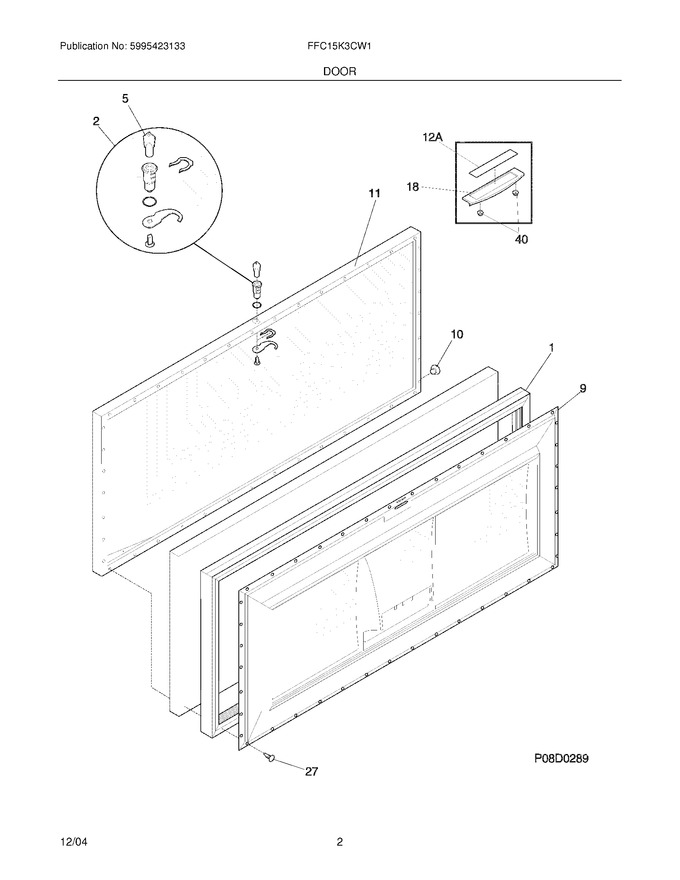

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 216481211 | Gasket-door, White (Replaces: 216481201) |
|
$ 204.03 | |||||
| 9 | 216057804 | Panel-inner Lid, White |
|
$ 140.44 | |||||
| 10 | 216923001 | Plug Button,1/4``,white |
|
$ 9.87 | |||||
| 11 | 216129900 | Panel-outer Door,white |
|
- | |||||
| 18 | 216446600 | Handle |
|
$ 43.42 | |||||
| 27 | 5303212828 | Clip,panel Mtg |
|
$ 16.63 | |||||
| 40 | 216922700 | Fastener,.330 Dia Stud ,handle ,(2) |
|
$ 12.05 | |||||
| 12A | 216816801 | Insert-nameplate |
|
$ 29.61 | |||||
| F2 | 5303925107 | Lock Assy |
|
- | |||||
| F5 | 297147700 | Key, Lock (Replaces: 216702900) |
|
Immediately | $ 7.57 | ||||
| NI | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
