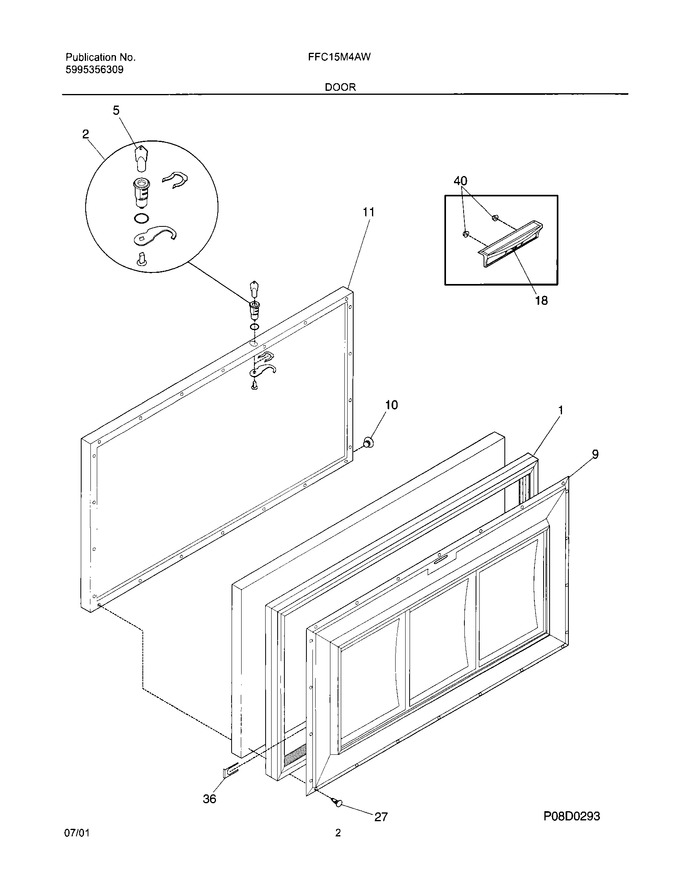

03 - Door


05 - Cabinet


07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216481211		Gasket-door, White   (Replaces: 216481201)				$ 204.03
9	216129912		Panel-outer Door/lid, White		Appelez-nous	-
10	216141101		Plug Button, White				$ 2.57
11	216057804		Panel-inner Lid, White				$ 140.44
18	216205001		Handle, White		Appelez-nous	-
27	5303212828		Clip,panel				$ 16.63
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
40	5309948647		Fastener, Handle		Appelez-nous	-
F2	5303925107		Lock Assy		Appelez-nous	-
F5	297147700		Key, Lock   (Replaces: 216702900)			Immediately	$ 7.57
NI	5303917276		Insulation				$ 330.91
